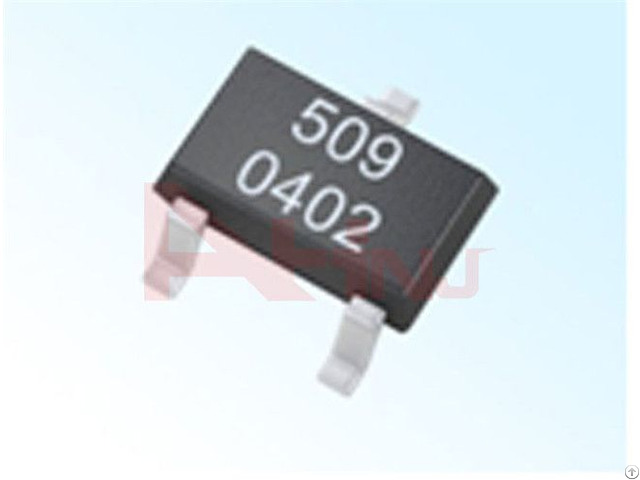

Linear Hall Sensor AH3509

Hall Sensor

Hall Switch

◆ Features

Rated working voltage 4.5 V ~ 6 V, Operating temperature range: -40℃ ~ 125℃;

Rail to Rail voltage output, Rated output current : 6 mA, Variety of package forms and outer packings for your choice.

No mechanical contact, no spark, switch signal stability, no shaking moment, high reliability and safety;

Products meet the EU RoHS instruction 2011/65 / EU and REACH regulations 1907/2006 / EU requirements

◆ Outline

The sensor will pass linear area /nonlinear area/ saturation area during the magnetic induction increases.

When there is no magnetic field that applies in sensor (B=0), when the output voltage of sensor is only half of Vcc (Vcc/2); when “N” pole faces mark surface of sensor, and be closed to it gradualy (B→-∞), the output voltage begins to decrease, and the voltage doesn’t reduce with the increased magnetic field; When the “S” pole of magnet faces the mark surface of the sensor and is closed to sensor gradualy (B→+∞), the output voltage of sensor begins to increase, and it doesn’t increase with the increased magnetic field after it reaches saturation voltage.
