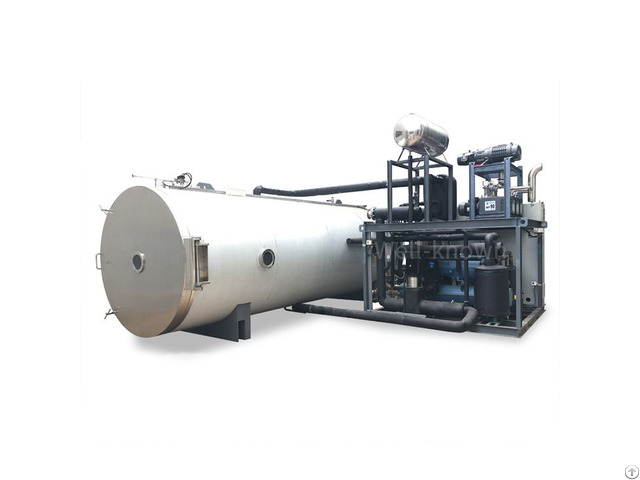

Large Industrial Freeze Dryer Machine - China

20m2 200kg Large Industrial Freeze Dryer Machine Affordable Freeze Dryer Freeze Dryer Manufacturer Product Description

The drying process is as follows: Firstly, the internal moisture of food has been frozen in the low-temperature environment.

secondly, In the drying step, the ice inside the previous raw material will directly be converted into steam evaporation during a near-vacuum environment.

Finally, the internal moisture of food will dramatically decrease.

The whole dewatering process is under a lower temperature environment than that of a traditional dryer.

The advantages of Large Industrial Freeze Dryer Machine

1 - In the freeze-drying process, the growth of microorganisms and the role of enzymes can not be carried out.

In the freeze-drying process, the growth of microorganisms and the role of enzymes can not be carried out.

2 - The volume is almost unchanged and the original structure is maintained.

3 - The surface hardening of the material will not be caused because the moisture in the material exists in the form of ice crystal after freeze drying.

Applied range

1 - Pet food: it can be used for freeze-drying processing of egg yolk, chicken breast, duck, beef, quail, dried fish, liver, etc.

;

2 - Food industry: In the food industry, it is mainly used for freeze-dried fruit and vegetable crisp, coffee, scented tea, mushrooms, fruit and vegetable juice, strawberries, whole shrimp, meat, specialty vegetables, freeze-dried instant soup, freeze-dried porridge, etc.

;

3 - Nutrition and health care: it can be used to process royal jelly freeze-dried powder, pearl powder, ginseng, tortoise powder, snake powder, etc.

It can store its nutrients and active ingredients for a long time to ensure the naturalness of nutritional health products;

4 - Biological products: bait for sea fishing (Jellyfish), ants, insect food, etc.

;

5 - Chinese herbal medicine: Cordyceps, Maca, plant extracts, Panax notoginseng, etc.

Labsnova Industrial Freeze Dryer Features:

1 - The freeze-dried box and partition are made in strict accordance with GMP requirements.

The cylinder is made of grade 304 stainless steel and the interior is mirror polished.

The production process and requirements are higher than the current domestic conventional food freeze dryer manufacturers.

2 - Adopt the integrated cold trap of the box body, the design of the front box and the rear trap, compact structure, with an observation window, and the observation window is equipped with a lighting device to facilitate observation of the situation in the box.

Designed into a structure or form that is easy to clean and has no sanitary corners.

3 - The coil for water trapping of the cold trap is made of clean stainless steel.

The integral structure or the split structure can be selected according to customer needs.

4 - The refrigeration system components are configured according to high-standard imported brands, with strong refrigeration capacity, fast cooling speed, stable and reliable performance.

5 - Use soaking or steam defrosting to quickly defrost and clean.

Product Parameters:

Model WK-5 WK-10 WK-20 WK-50 WK-100

area (sq.

m) 5 10.5 20 50.31 98.7

Output (approx.

) 50KG 100KG 200KG 500KG 1000kg

Maximum ice capacity 100KG 200KG 400KG 800KG 1500kg

Control Microprocessor

Finish Ra≤0.5um (0.5Mircon)

Material SUS 304

Temperature range -45~-50°C to + 80°C

Number of shelves 5+1(upper radiant shelf) 7+1(upper radiant shelf) 10+ 1(upper radiant shelf) (15+1)x2, (upper radiant shelf) (15+1)×2, (upper radiant shelf)

Dimension (LxWxT) (mm) 1000x1000x20 1500x1000x20 2000x1000x20 3100x541x18 6080x541x18

Spacing (mm) 65 65 70 77 77

Power 37kw 63kw 88kw 150kw 278kw

Dimension of unit (approx.

)

(LxWxH) (mm) 4500×2100×

3600 6300x2100x

3600 7600×2100×

3600 9100x2500x

3600 16000x2500x

3600

Weight (approx.

) 5000kg 6500kg 7500kg 14000kg 20000kg
