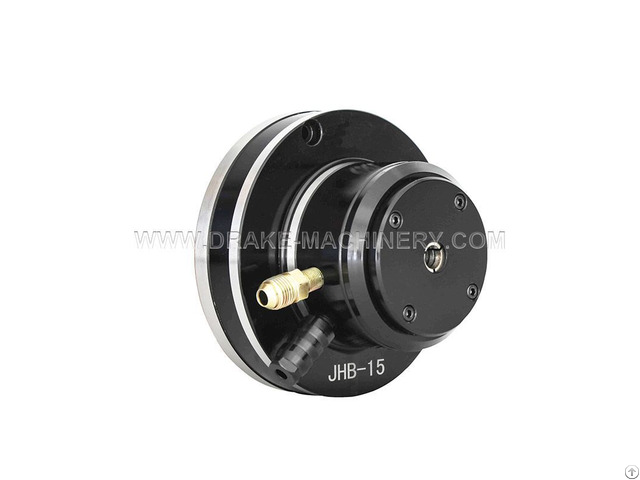

Jhb Hydraulic Rotary Collet Chuck - China

JHB Hydraulic Rotary Collet Chuck Collet Chuck Manufacturers Customized Collet Chuck Accuracy Hydraulic Collet Chuck Features:

Heat-treated steel integrally formed structure, bearing no load, high rigidity and stability, long life and low temperature rise.

Two-way power, forced open collet, never jam.

When the air source is interrupted, the collet is self-locking.

The direct flange is connected to the main shaft, which is convenient and quick to install.

It can be connected to the machine system control through a three-point combination air valve.

Quickly change the collet to facilitate product replacement, the collet does not retract, and the working length can be controlled normally.

The oil pressure clamping force is large and the relative rotation speed is low.

JHB Hydraulic Rotary Collet Chuck Suitability:

Heavy cutting machining, suitable for shaft type gear clamping.

Product Parameters

Size Parameters Model/Spec.

A B C

(H6) D F G H I J Max.

Speed

(rpm/min) Piston stroke

(mm) Working pressure

(kg/cm²) Clamping range

(mm) Clamping Stroke

(mm) Matching collet

JHB-15 133 100 4 / 84 31.5 85 3-M6 120 500 2 5~18 ∮2~15 0.5 YB-15

JHB-25 167 130 5 36 104 46.5 134 4-M8 147 400 3 5~18 ∮5~25 1 YB-25

JHB-40 187 150 5 57 133 50.5 140 4-M8 168 400 3 5~18 ∮5~40 1 16C

JHB-60 220 170 5 80 174 61.2 166.3 6-M8 203 300 3 5~18 ∮5~60 1 20C

Note: The clamping torque is measured by clamping a 20 mm round bar at 15 kg/cm2.

★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements.

★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter.

Subject to final confirmation parameters! Introduce foreign advanced technology and management concept, High precision processing equipment, High-end measuring instruments; Have a high quality professional team, Strictly follow the ISO9001-2008 quality control system, Perfect sales network and good after-sales service, The management platform of informatization interaction, scientific management, standardized specifications, standardized operation and specialized manufacture, Make a famous brand of "DRAKE".

Our products including rotary cylinder, power chuck, collet chuck and so on.

It can also be made according to the user’s special needs, provides you with the best integrated solutions for the clamping mechanism.

Depending on “reasonable price, reliable quality, considerate service, constant innovation’’, all of those products ahve been well recognized by users both old and new, and they are widely aplied to NC lathe, common lathe, machining center, driller and miller, welding machines, pipe threading machine, production line equipment, and automatic control system, etc.

We can solve any problem for you: quality, price, delivery time, shipping cost, after-sales service, etc.
