HAK36 hydraulic NC turret CNC Turret Exporters 8 station NC turret tool holder Product Details

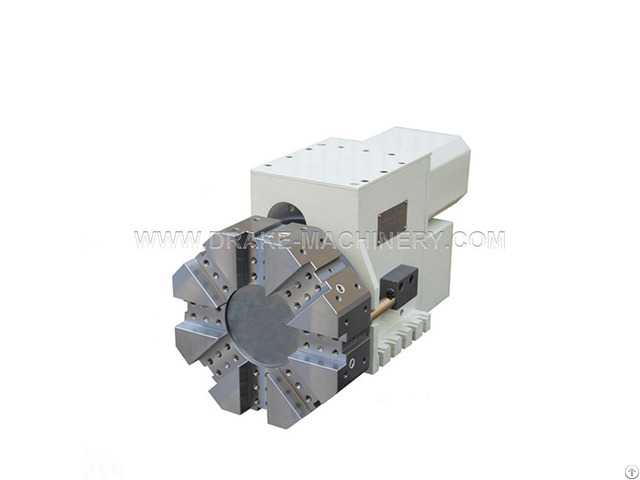

HAK36 series hydraulic NC turret power to rotate with oil-hydraulic motor, quipped with conjugate cam for indexing driving tool-disc, clamping/unclamping tool-holder disk with hydraulic force, indexing and positioning with precise curvic coupling, sending signals with proximity switch.

It features smart bidirectional indexing and positioning in the shortest path, high torque, high speed and silence, the accuracy of repeatability is very good and it is able to bear heavy-cutting.

It has the functions of count, parity check, locking answer signal for ensuring safety in use.

The turrets are widely used in various kind of NC lathe, so that the lathe can operate for facing, turning, arcing, boring, threading, grooving and parting in once hold.

1 - Confirm various parameters when choosing models of turret.

Choose the number of stations according to quantity of part procedure and complicacy.

2 - Choose tool specifications according to model of machine tool and cutting force.

Choose the front type or rear type tool turret according to the cutting directions of the machine tool.

3 - After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark.

The tool should be fixed in the former position in the later mounting.

4 - The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size.

Please note when placing an order, if more than the limit.

5 - Touch by hand or other things is forbidden when turret is running to avoid injury or damage.

6 - If customers have any special requirements or changes in parameters, please offer some data and contact with our company.

Product Parameters

Model/Data Center height (mm) Station number Working pressure

(Mpa) Flow

(L/min) Repeatability accuracy(") Time of adjacent tool changing(s) 45º 180º

HAK36050 5 8 2～2.5 12 ±2 0.4 1.5

HAK36063 63 8 3～3.5 12 ±2 0.6 1.6

HAK36080 80 8 3～3.5 12 ±2 0.6 1.6

HAK36080A 80 8 10 12 3.5～4 20 ±2 0.8 1.8/2.2/2.5

HAK36100 100 8 10 12 3.5～4 30 ±2 0.8 1.8/2.2/2.5

HAK36125 125 8 12 4～4.5 40 ±2 1 2/2.8 Model/Dim A B C D H1 H2 b b1 b2 h h1

HAK36063 228 185 165 148 63 228 20 11 φ15 20 10

HAK36080 240 210 190 158 80 245 20 11 φ17 20 10 Model/Dim L L1 L2 L3 J K M N φ1 φ2 φ3

HAK36063 443 65 38 175 19.5 30 30 30 φ272 φ316 φ25

HAK36080 473 80 37 191 22 32 32 32 φ290 φ345 φ25 Model/Dim A B C D E F G K H1 H2 L M

HAK36050 180 150 133 / 168 59 41 41 50 155 94 45

HAK36080A 270 215 190 330 235 80 45 45 80 227 117 80

HAK36100 300 250 220 365 272 95 45 45 100 290 133 90

HAK36125 420 310 280 360 270 125 / / 125 325 137 103 Model/Dim N O P R S T U b b1 b2 h h1

HAK36050 10 300 153 20 30 30 30 16 9 15 16 10

HAK36080A 15 365 191 32 32 32 32 25 11 17 25 12

HAK36100 19 380 206 34 40 30 30 25 13 20 25 18

HAK36125 19 403 226 30 44 43 43 32 17 26 32 10 We are a manufacturer of CNC Lathe Turret.

When you select a CNC Turret model, please check each parameter.

Select the number of stations according to the number and complexity of the part program.
