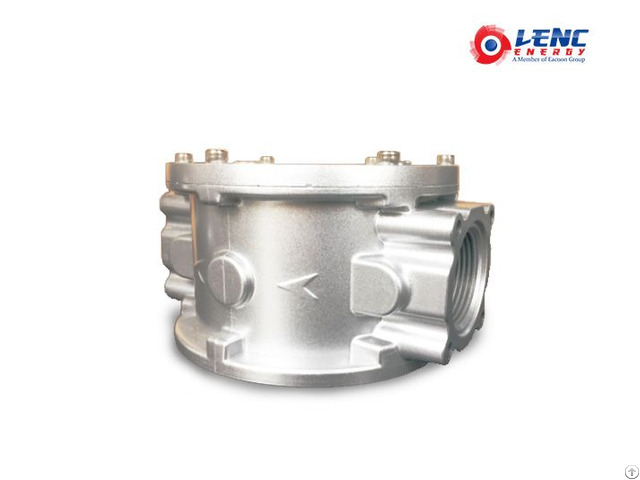

Gas Filter Filtering Accuracy 50 µm

Description and Application

It consists of a filter cartridge made of washable synthetic material and can be entirely removed for full inspection, cleaning and/or replacement.

This device is designed with special type O sealing ring, which is convenient to use, it can be used on town gas, natural gas, liquid petroleum gas and other non-aggressive gases.

Technical Specification

--TECHNICAL DATA

• Application : Non-aggressive gases of the three families (dry gases)

• Working temperature: -20 - +70°C

• Maximum operating pressure: 6 bar

• RP threaded connection : RP1/2’’ to 2’’ Flanged connections : DN 5 0 t o DN 1 5 0

• Filter element*: Filtering Accuracy 50 µm

Overall Dimensions and item No.

Model.

Connection A(mm) B(mm) C(mm)

WFM15P RP 1/2’’ Threaded 130 70 95

WFM20P RP 3/4’’ Threaded 130 70 95

WFM25P RP 1’’ Threaded 130 70 95

WFM32P RP 1 1/4’’ Threaded 165 85 140

WFM40P RP 1 1/2’’ Threaded 165 85 140

WFM50P RP 2’’ Threaded 160 110 140

WFM50/F DN50 Flanged 215 155 165

WFM65/F DN65 Flanged 290 180 210

WFM80/F DN80 Flanged 310 190 210

WFM100/F DN100 Flanged 350 200 255

WFM125/F DN125 Flanged 410 275 295

WFM150/F DN150 Flanged 480 300 330
