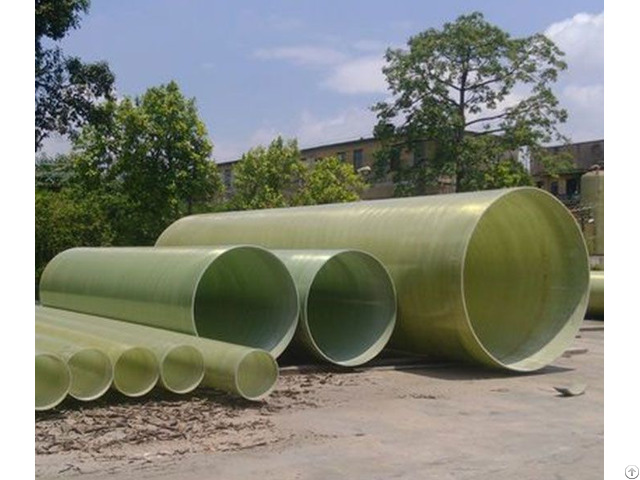

Fiberglass Pipes - China

High Voltage Fiberglass Pipe

Less Joint Fiberglass Pipes

Pollution Resistance Fiberglass Pipes

APPLICATION

The fiberglass pipes can resist the long-term corrosion of various chemical medium such as various acids, alkalis, salts, organic solvents, seawater and sewage.

The pipes with different properties can be selected according to different medium types and operating temperatures.

◎ Excellent mechanical properties

The fiberglass pipes have a small specific gravity (1.8~2.1g/cm3) and a high strength (≥300MPa), whose specific strength is much higher than that of steel pipes and cast iron pipes.

Owing to the addition of resin mortar in the middle layer of the pipe wall, it greatly improves pipe stiffness and it is suitable for laying in various soil environments and seabed.

◎ Excellent hydraulic properties

The fiberglass pipes have a very smooth inner surface and low friction resistance (n≤0.0084), which can obviously reduce on-way pressure loss and increase the flow rate.

At the same flow rate, the delivery pump with a smaller pipe diameter or low power may be selected, thus reducing the initial engineering investment and energy consumption (lowering the operating cost).

◎ Good designability and a wide range of adaption

The design by changing the material, winding angle and laying may be adopted to adapt to different requirements of working pressure, medium and stiffness (or laying depth), so as to manufacture the fiberglass pipes with different pressure grades and special properties.

◎ Pollution resistance and nontoxicity

The smooth inner wall does not scale and breed algae and other microorganisms, and causes no secondary pollution to water quality.

The pipes made of food-grade resin can be used to convey drinking water.

◎ Less joint and good airtightness

The length of a single fiberglass pipe is usually 12m.

The pipes are connected using double O-rings, and pressure test can be conducted on each connector, which is reliably sealed.

◎ Light weight and easy to transport and install The weight of the fiberglass reinforced mortar pipework accounts for only 1/4 of that of the ductile cast iron pipe of the same specification and length and 1/10 of that of cement pipe.

It is easy to transport and load and unload, and is characterized by high installation efficiency and low cost.

Product specifications

(1) Diameter: DN300mm-DN4, 000mm.

(2) Pressure grade: 0.25MPa, 0.6MPa, 1.0MPa, 1.6MPa, 2.0MPa and 2.5MPa.

(3) Single length: 3m, 6m, 9m and 12m.

(4) Stiffness grade: 2, 500N/m2, 5, 000 N/m2 and 10, 000 N/m2 - Note: The pipes of other pressure grades, stiffness grades and length specifications may also be produced at the request of the users.

Company Contact:

• Posted By: Hebei Wei Tong glass steel Co., Ltd.

• Phone: 15512998988

• Address: No. 388, Chunfeng Street, Cangzhou City,Hebei Province,china, Hengshui, Hebei, China, Hebei , China

• Email:

• Website: https://www.frpwt.com/

• Business Description: Hebei Weitong Fiberglass Co., Ltd., is a first-class fiberglass manufacturing and marketing enterprise in China, which is specialized in fiberglass storage tanks and fiberglass reinforced mortar pipework and owns more than 20 national patents including fiberglass devices of coal chemical industry, aeration mixing nozzles, papermaking industry towers, large-diameter flue duct preparation devices and jacketed fermenters.

  Our Products:

  - fiberglass storage tank

  - fiberglass septic tank

  - fiberglass desulfurization tower

  - strength of fiberglass desulfurization filter mesh

  - fiberglass acid mist purification tower
