Electric Actuator 220VAC 24VAC 110VAC 50/60Hz

Description and Application

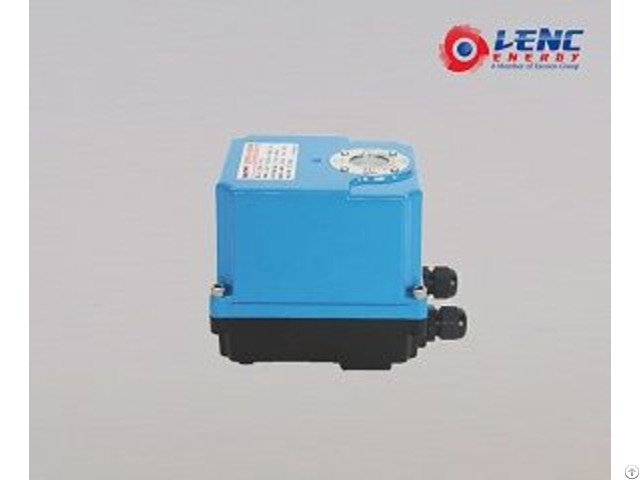

LC-BT-40 Series Rotary Electric Actuator is specially used in controling of 0-90 °or 0-160 ° Corner travel.

Available used for operating and controlling all kinds of butterfly valves, ball valves, plug valves, ventilation valves and other valve devices.

3-point control signal and adjust control signal (4-20mA) are used for continuous controling, 2- point control signal is for turn on / off or two point position controling

Can be equipped with two-bit position auxiliary switch

3-point control signal and 2-point control signal are equipped with manual / automatic switch, convenient for installation, debugging and general maintenance.

Position output signals have resistor and current / voltage options

Technical Specification

Supply Voltage：220VAC 24VAC 110VAC 50/60Hz

Control Signal：4-20mA 1-5V 0-10V

Running time：55s(90°) 30s (90°) 15s(90°)

5s(90°) 3.3S(90°)

Output shaft torque：55s(40Nm) 30s(25Nm) 15s(15Nm) 5s(5Nm) 3.3S(5Nm)

Operating environment: -30℃～+60°C

Protection Class：IP54 IP67 (Optional)

installing direction: 360°installed at any angle

Corner travel: 0-90° adjustable or 0-160° adjustable

Motor Power: 15W

Insulation Resistance: 100MΩ/500VDC

Compressive Strength: 1500VAC/1min

Net Weight : 3.2Kg

Overall Dimensions and item No.

China Electric Actuator Factory: Guangzhou Liancheng Energy Technology Development Co.

Ltd.

Installation Environment

This product is an non-explosion-proof item, please avoid used under the flammable, explosive and other similar environments.

Protection measures need to be installed, if there is long-term raining, oil &other flying objects, and especially under the impact of direct sunlight environments.

Please reserve space for maintenance such as wiring and manual operation etc., The environmental conditions temperature is in the range of -30 to +60°C.
