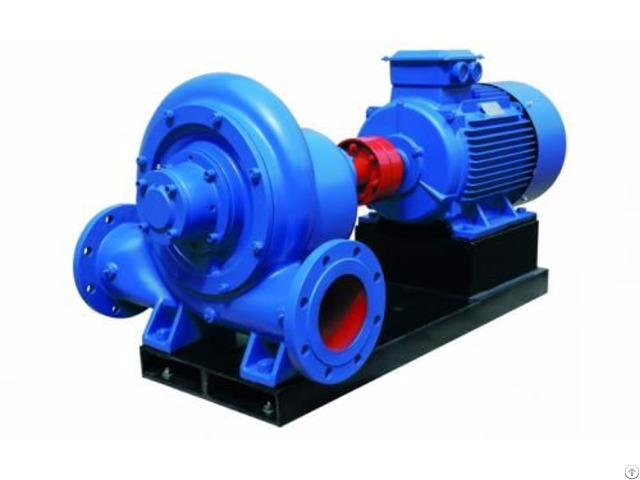

Ast Type Horizontal Double Support Centrifugal Pump - China
price: 500.00 Dollar US$
Description of Horizontal Centrifugal Pump:
AST horizontal double support centrifugal pump is a high quality and well-established industry pumps on the market.
with the advantage of higher efficiency and easy maintenance, suitable for slightly contaminated thin liquids and meets the special industrial market requirements for: High-efficiency impeller with low NPSH values
Stable & Compact construction design
Easy installation/service due to nozzle in-line construction
Specific materials
Standardized to modular design
Special chamber(half spiral) design to ensure good Cavitation
Spacer-coupling options for easy maintenance
Robust shaft design options
Fully range of selection chart for you variable design requirement Design Features of Double Support Centrifugal Pump:
The pump is a horizontal inline, radial split, single-stage centrifugal pump with nozzles according to international standards.
The pump casing is equipped with a replaceable Wearing ring.
The impeller is made with double-curved vane to ensure low NPSH-values and high efficiency.
The bearing unit is equipped with sturdy ball bearings and the small types are fitted with lifetime-lubricated bearings.
A shaft in stainless steel with mechanical shaft seal of an approved brand is standard.
Horizontal Centrifugal Pump Operation Data:
Capacity: up to 616L/s (2218m3h), or as per any request.
Head: up to 100m(328ft), or as per any request.
Working temperature: up to 105°C
Design pressure : 1.0Mpa/1.6Mpa/2.5Mpa
Nozzle: up to 500mm or special design.
the standard can be DIN, ANSI or another standard.
Company Contact:
- Posted By: CROOS PUMP (SHANGHAI) CO.,LTD.
- Phone: 64092786
- Address: No.518 Zi Xu Road,Minhang District ShangHai,China,201111, Shanghai , Shanghai , China
- Email:
- Website: http://www.croospump.com/
Published date: September 17, 2017
- Business Description: Croos Pump is a SINO-AMERICAN joint venture, manufacturing base is located in shanghai , China, we supply industrial centrifugal pumps, offer reliable solutions and design service for water treatment system, plant, hydropower station, seawater treatment, sewage water treatment and HVAC and other industrial sectors.
The excellent quality and design of our products strengthen the competitive position of our customers from all worldwide: USA, EUROPE, ASIA, MIDDLE-EAST, AFRICA, AUSTRALIA…
