Coated Diamonds Cbn - China

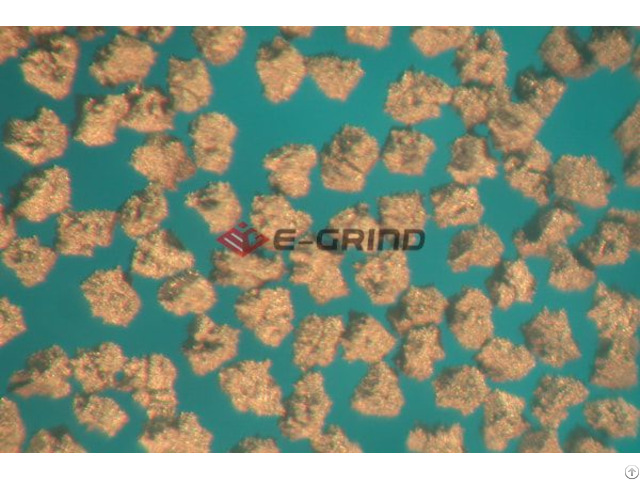

With more than 30 years experience, E-Grind provides various types of coating onto diamond and CBN mesh and micron powder.

As per the bond system, E-Grind supplies customers with the most suitable coating onto the superabrasives grits.

The coating enhances the retention ability between diamond/CBN and the bond, improves the heat resistance performance, electric conductivity characteristics.

Electroless Ni Coat Provide premium mechanical retention to diamond or CBN, with better heat dissipation, higher durability and smooth surface finish.

Application: Resin bond system

30%, 56%, 60% coated (by weight) is available upon request.

Electrolytic Ni coat Provide the mechanical retention to diamond or CBN, with better heat dissipation, higher working efficiency and improved durability.

Application: Resin bond system

30%, 56%, 60% coated (by weight) is available upon request.

Titanium coat

Keep diamond or CBN grits away from oxidation and graphitization at high temperature; provide better retention ability to diamond or CBN with longer using life.

Application: Resin Bond and Metal Bond system

2% coated (by weight) is available upon request.

Copper Coat

Have superior ability in dry grinding applications.

Provide better retention of diamond or CBN with excellent heat dissipation.

Application: Resin bond system

50% coated (by weight) is available upon request.

Company Contact:

• Posted By: Henan E-Grind Abrasives Co., Ltd

• Phone:

• Address: Room 1841&1842, Tower A, Wanda Plaza#171, Zhongyuan Middle Road , ZHENGZHOU , HENAN , China

• Email:

• Business Description: With 40 years experience in Superabrasive industry, E-Grind Abrasives is a very reliable partner in supplying full range of Diamond and CBN grinding wheels for many industries: Woodworking, Die&Tooling, Bearing, Paper-Making, Automobile, Aerospace, Semi-Conductor.

  Our goal is to have 100% customer satisfaction.

  To gain this, E-Grind always provides customers the most competitive price, consistent quality, efficient service and the most effective tech support.

  Our technology and bond systems are from US and Europe.

  The producing machines are mainly imported from US, Europe, Japan and Taiwan; specially we have 6 CNC machines for the machining and grinding of Diamond CBN wheels; and the testing machines are also from Japan and Europe.

  All of these make our products to be premium grade with high tolerance and to meet US and Europe standard and level.

  Our capacity is 30, 000pcs of Diamond CBN wheels per month; meanwhile we have more than 5000 sets of mold available; more than 8000 wheel specs; thousands of standard wheels in stock; customs made wheels are always available.

  All these make us to be able to supply wheels in very fast delivery time: 5 days for very urgent items and 14 days for standard items.

  With more than 40 bond systems, 7 types of wheel body material and more than 8000 wheel specs available, Our experienced engineers are always ready to provide customers the application assistance and Tech support.

  For all the inquires, feedback or any other requirements, we always response within 24 hours.

  We could provide the improved products upon customer's feedback quickly.
