Product Description:

Features:

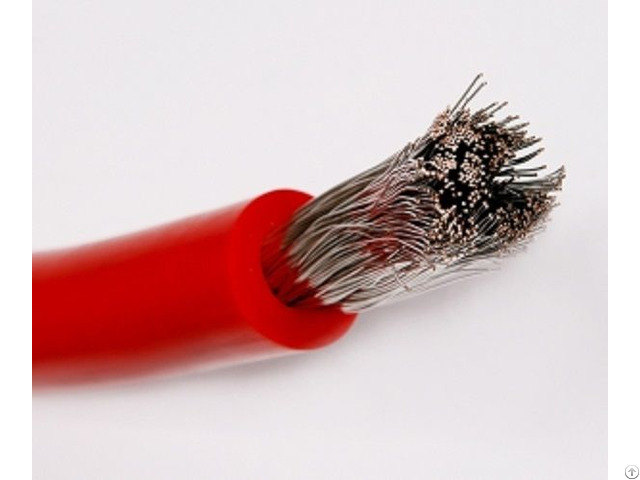

Silicon Rubber Electrical Wire: Resistant to acids, oils, alkalies, moisture and fungus.

1 - Tin or nickel plated copper wire, stranded conductor.

2 - Colors: transparent, white, black, red, blue, yellow, green, brown, yellow/green

3 - Temperature Range: -60℃+200 ℃.

4 - Rated voltage: 600 volts.

5 - Passes ULVW-1&CSA FT1 vertical flame test.

6 - Single silicone extrusion insulation to ensure easy stripping and cutting.

Applications:

For general purpose internal wiring of electronic, appliances, motor lead, igniters, dryers, and ovens .

This silicon wire gives the advantage of small diameter, good abrasion resistance, because it is a single extrusion which does not contain any fiberglass braid, which eliminates trimming of the braid.

Structure Size

Conductor Insulation Max Resistance 20℃ Ω/Km

Spec AWG Area mm2 NO/D Diameter mm Nominal Thickness mm Nominal Diameter mm Max Diameter mm 12 3.294 65/0.254 2.37 0.78 3.93 4.13 5.640

14-1 2.080 41/0.254 1.88 0.78 3.44 3.64 8.96

14-2 1.945 19/0.361 1.88 0.78 3.44 3.64 8.96

16-1 1.230 19/0.287 1.50 0.78 3.06 3.26 14.60

16-2 1.320 26/0.254 1.50 0.78 3.06 3.26 14.60

18-1 0.810 16/0.254 1.18 0.78 2.74 2.94 23.20

18-2 0.824 41/0.16 1.18 0.78 2.74 2.94 23.20

20 0.534 21/0.18 0.95 0.78 2.51 2.71 36.70

22 0.342 17/0.16 0.76 0.78 2.32 2.52 59.40

24 0.221 11/0.16 0.61 0.78 2.17 2.37 94.20

PRINTING MARK ACCORDING TO CUSTOMER REQUIREMENTS

E300704 AWM 3135 NO()AWG 150℃ 600V FT-2 CHINA SANEW CABLE CO., LTD

The data in this catalogue is only used for reference, but not for the formal production.

The specifications of the product are subject to the datasheet confirmed by both the supplier and the customer.

Sanew Cable owns the final right of interpretation.
