Stranded Conductor Ul Cable - China

UL3135 Cable Manufacturer

Product Description:

Standard: UL758

File number: E239689

Features:

1) Temperature range: -60℃~ +200℃.

2) Rated voltage: 600V.

3) Colors: transparent, white, black, red, blue, yellow, green, brown, yellow/green

4)Conductor is single or multiple twisted wire made of tin-plating copper, nickel-plating copper.

5)Jacketing material is silicone rubber insulation and braided fiberglass.

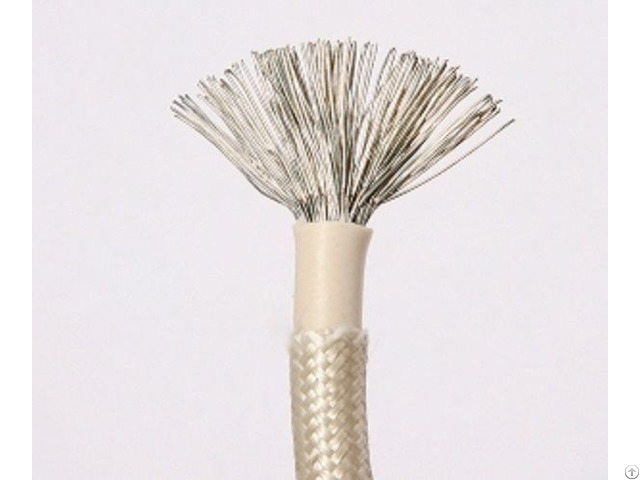

The conductor is flexible stranded.

A silicone compound is applied over the conductor and the wire is then covered with a saturated fray-resistant fiberglass braid.

Applications:

Widely applied for home appliances, lighting equipment, electric instruments, medical unit, and can be used for leads to motors, transformers, appliance, electric or other electrical circuits where a flexible conductor is required to operate under high temperature conditions and where moisture may be present

Structure Size

Conductor Insulation Max Resistance 20℃ Ω/Km

Spec AWG Area mm2 NO/D Diameter mm Nominal Thickness mm Nominal Diameter mm Max Diameter mm 14-1 1.963 41/0.254 1.88 0.8 3.74 3.84 8.96

14-2 1.950 19/0.361 1.81 0.8 3.74 3.84 8.96

16-1 7/0.44 1.50 0.8 3.36 3.46 14.60

16-2 19/0.287 1.50 0.8 3.36 3.46 14.60

16-3 26/0.254 1.50 0.8 3.36 3.46 14.60

16-4 54/0.18 1.50 0.8 3.36 3.46 14.60

Company Contact:

• Posted By: China Sanew Cable Co., Ltd.

• Phone: +861051265801

• Address: 2-1-101, Binhefang, Daxing district, Abbots Langley, Aberdeenshire , China

• Email:

• Website: http://www.wiresandcablechina.com/

• Business Description: China Sanew Cable Co., Ltd. is a professional enterprise manufactures various kinds of wires and cable, which are burning resistant, high temperature resistant, anticorrosion, and aging defensive.

  Sanew is famous for its high quality and safe wires and cable.

  Sanews products not only apply to apparatus industry, machinery and power industry but also apply to aviation , subway, steel industry, power industries etc.

  Since the products are all very safe, they are more applicable to high buildings, public areas and the renewal of the electrical appliance as well.

  Sanew can not only manufacture products according to the China National Standard but also international standards as well, for example, UL, IEC, VDE etc.
