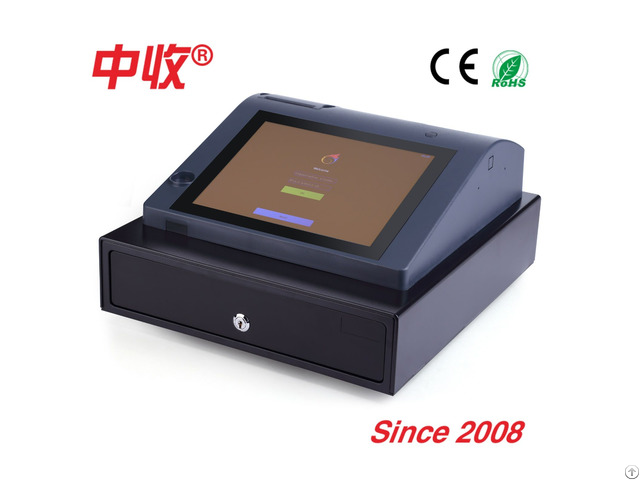

Compact Touch Screen Cash Register All In One Pos Ts970 - China

*All in one design, easy to use, powerful features, cost effective

*Capactive touch screen

*3 lock positon compact cash drawer

*Industrial android main board

*Deep improved android system

*Preinstalled APK

*QR Code print, QR show

Embedded POS machines installed small ticket printer, customer display, card reader, cash drawer, truly integrated, so you have a machine in hand to solve all problems.

Built in Dual core ARM-CORTEX A7 CPU.

4G EMMC flash, 1G DDR3 RAM.

Android 4.22 OS.

TS1512 APK preinstalled.

9.7" TFT LCD with 1024*768 - 4wire resistance touch screen.

3*USB host for USB printer, USB scanner, or USB disk.

2*RS232 for RS232 device, such as RS232 printer or scale.

1*RJ11 for cash drawer.

1*RJ45 for Ethernet.

Built-in WIFI.

Built-in Customer display (LCM128X64).

Built-in thermal printer(58mm).

Built-in battery for RTC.

Built -in magnetic card reader.

Fixed with cash drawer (330x360x90, 4b5c/3B5C, 3positons).

Display

Clerk 1024X768 9.7"TFT LCD

Rear LCM 128X64

Cash Drawer

RJ11 Build in

Main board

CPU ARM cortex-A7 dual core

RTC DS1302

Flash Memory 4G EMMC

RAM 1G DDR3

Interface

Interface 2RS232, 3USB, 1ETHENET

Capability PC, scanner, scale, kitchen printer

WIFI 802.11b/g/n Support

Power supply

Power supply DC 24V/2, 5A adaptor

Rate AC85~245, 50~60HZ

Power Approx.

36W

Temperature and humidity

Operation 0-50 ºC

Storage -40~60ºC

Humidity 20-90% (Relative)

Package

package 420x370x255mm carton box

Shock 1m drop on concrete surface

MTBF and standard

MTBF MTBF>5000hours

EMC Custom
