Automatic Mechanical Stirring Borosilicate Glass Phototroph Bioreactor 11 19 - China

Institute of Marine bioengineering which is located in Peking University

，Tsinghua University and Yantai University three university

science and Technology Park, new and high-tech area of Yantai, China is an

independent research and development of advanced technology

enterprise.

It is approved by the relevant departments of the state

registration of enterprises.

With the spirit of 'customer first, honesty

first' principle, the institute has established the long-term

cooperation with many domestic enterprises and research institutes.

Warmly welcome friends come to visit, study, business negotiations.

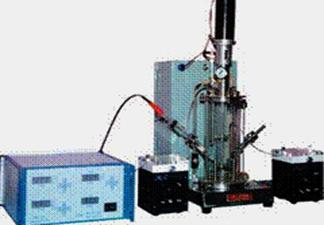

Automatic mechanical stirring borosilicate glass phototroph bioreactor

Optional

1 - Multi-way feeding

2 - weighing of fed materials

3 - ORP online inspection

4 - Tail gas O2, CO2 content online inspection

5 - Methanol(alcohol)content online inspection

Nominal volume

3L, 5L, 10L

Tank configuration

Special heat resistant and pressure withstanding borosilicate glass tank, the upper cover made of 316L stainless steel.

Stirring system

Top mechanical stirring system , aseptic mechanical seal system;

DC stirring motor, easy assembly and disassembly, convenient SIP;

2-layer flat vane, oblique vane, bending vane(low shear stress) and axial flow vane are optional.

Stepless speed control, digital setting of rotation speed control.

Structure mode

Desktop fermentor, compact structure and convenient operation.

Ventilating system

Equipped with stainless steel circular spreader;

Rotor flowmeter display, pressure display, manual valve flow adjustment;

Equipped with high-efficiency bacteria removing filter with a precision of 0.01μm;

External no oil compressed air is required, for continuous and stable air supply.

Temperature control

Online inspection, digital setting, automatic control;

Pt-100 temperature probe and digital temperature meter;

Built-in electric heating device and external coolingwater for automatic temperature control.

pH control

Online inspection, peristaltic pump automatic incremental feeding of acid or alkali solution for adjustment;

Imported Switzerland pH electrode realizes hightemperature steam disinfection.

Dissolved oxygen(DO)

Online inspection, with a rage of 0-100% or0-180%;

Imported Switzerland DO electrode realizes high temperature steam disinfection;

Feeding control

peristaltic pump time proportional incremental feeding, with the volume of incremental feeding being displayed and recorded.

Defoaming mode

Foam electrode, automatic alarming in case of abnormal foam situation;

Peristaltic pump automatic/manual incremental feeding of defoaming agent, with the volume of incremental feeding being displayed and recorded.

Control system

Application PLC control system, Siemens PLC controller, color touch screen operation interface with complete functions and stable running.

Equipment features

SIP, protecting cover, good safety and reliablility;

Special mechanical seal with reliable sealing;

Strong stirrig power and clear observation;

Easy assembly and disassembly, convenient use.
