2 Inch Dc Plasma Magnetron Sputtering Coater For Conductive Thin Films - China

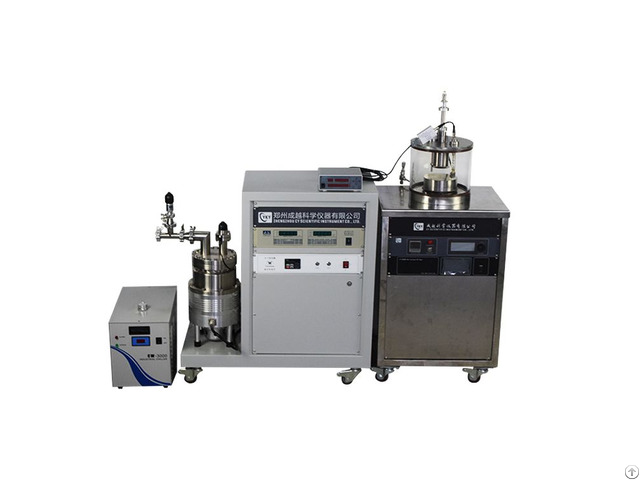

CY-MSP300S-DC is a compact magnetron sputtering system with one 2" target sources.

DC source for coating metallic material.

A film thickness tracker is included to enable the user to control processing easily.

This coater is designed for coating both single or multiple film layers for a wide range of materials, such as alloy, ferroelectric, semiconductor, ceramic, dielectric, optical, PTFE etc.

Its compactness and ease of operation make it an ideal coating system for use in R&D labs.

Technical parameters：

Input Power: 220VAC 50/60Hz, single phase, 2000W (including pump)

Source Power: The power source is optional with one RF power source;DC source: 500W for coating metallic materials ( below left)

Magnetron Sputtering Head: One 2" Magnetron Sputtering Head with water cooling jackets are included to connect optional power source;Head Water Cooling: 10ml/min water flow required

Vacuum Chamber: 300 mm Dia x 300 mm height, made of high purity quartz

Sample holder size: 185mm

Rotate speed: 1-20rpm adjustable

The holder temperature is adjustable from RT to 500°C Max with accuracy +/- 1.0℃

Vacuum Pump Station: 1 - High speed turbo vacuum pump system is directly installed on the vacuum chamber for max.

vacuum level;2 - Heavy duty dual stage mechanical pump is connected to turbo pump for faster pump speed;3 - Mobile pump station is included and the compact sputtering coater can be put on top of station;4 - Max.

vacuum level: 10^-6 torr with chamber baking

Thickness Monitor: 1 - One Precision quartz thickness sensor is built into the chamber to monitor coating thickness with accuracy 0.10 Å;2 - LED Display Unit outside chamber can: Input material to be coated according to data base included, Display total thickness coated and coating speed;3.5 pcs quartz sensors (consumable) are included;4 - Water cooling is required

Warranty: One years limited warranty with lifetime support
