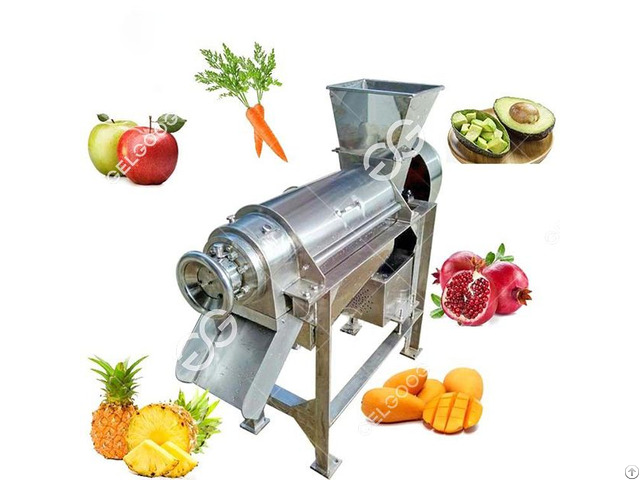

Fruit Screw Juice Extraction Machine - China

This machine is suitable for squeezing pineapple, apple, pear and other crushed pome fruit juice.

The working principle is that the crushed pulp, juice, and skin enter the screw juicer through the feed hopper.

As the bottom diameter of the screw gradually increases along the slag outlet direction, the pitch of the screw gradually decreases.

When the material is pushed by the screw, the volume of the screw cavity Shrink to form a squeeze of the material.

The rotation direction of the screw spindle is counterclockwise when viewed from the feed hopper to the slag trough.

The raw materials are added to the hopper and pressed by the screw.

The squeezed juice flows into the juicer at the bottom through the filter, while the waste is discharged through the annular gap formed between the screw and the pressure-regulated cone.

The movement of the pressure regulating head along the axial direction can adjust the size of the gap.

Turn the handwheel of the handwheel bearing seat by hand to change the size of the gap between the pressure regulating head and the spiral cone, that is, adjust the resistance of the slag discharge, and then change the slag discharge rate.

Part of the slag particles will be squeezed out through the filter together with the juice.

Although the juice output increases, the quality of the juice decreases.

The size of the gap should be determined by the user’s specific process requirements.

So as to achieve the purpose of automatic separation of juice and residue.
