Howo 6x4 Cargo Truck - China

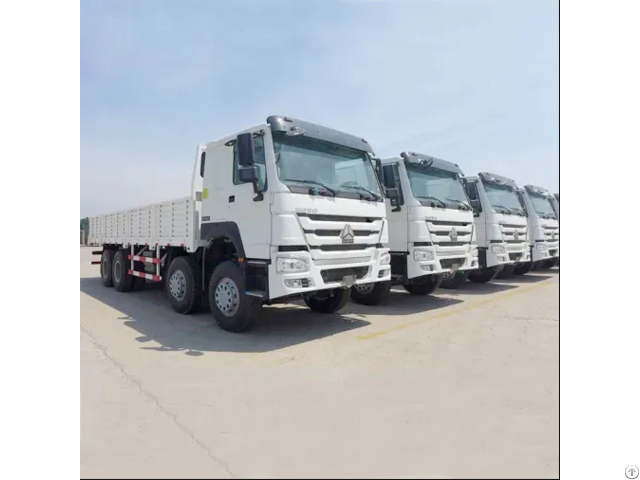

HOWO 6X4 Cargo Truck

Cargo truck, also named van truck or lorry.

It is suitable for industry and agriculture, postal and cold storage.

The cargo compartment can be customized and modified.

Product Description

HOWO CARGO TRUCK MAIN SPECIFICATIONS (6×4, EUⅡ)

Truck Model ZZ1257M4341W ZZ1257N4341W ZZ1257M4641W ZZ1257N4641W ZZ1257S4641W ZZ1257M5841W

Cabin Model HW76 Type Extended cab, single sleeper, up, down, front and rear adjustable steering wheel, VDO instrument and control module, double locking structure, safety belt, external sunshade

Engine Model WD615.87 WD615.69 WD615.87 WD615.69 WD615.47 WD615.87 Rated power kW/rpm 213/2200 247/2200 213/2200 247/2200 273/2200 213/2200 Max.

Troque Nm/rpm 1160/1100-1600 1350/1300-1600 1160/1100-1600 1350/1300-1600 1460/1300-1600 1160/1100-1600 Displacement L 9.726 Type In line, six cylinder, two valve, supercharging, intercooling, rear supercharger

Clutch Φ 430 diaphragm spring clutch, hydraulically operated, air assisted.

Transmission Sinotruk HW series 10 speed transmission has the structure of main and auxiliary gearbox, double auxiliary shafts of main gearbox and planetary deceleration of auxiliary gearbox.

Front Axle HF7, Rated load 7 tons

Rear Axle HC16, Rated load 16 tons x 2

Suspension The front and rear suspensions are leaf springs.

The front suspension is equipped with shock absorber and transverse stabilizer, and the rear suspension is a disconnected balanced suspension with transverse stabilizer

Steering ZF8098 steering gear, ZF steering oil pump, system pressure 18Mpa

Break Service braking: double circuit pneumatic braking; Parking brake: spring energy storage cut-off brake; Auxiliary braking: engine exhaust braking; Engine EVB, ABS and automatic slack adjustment arm are optional

Electric Voltage: 24V; Generator: 1540w; Starter: 24V, 7.5kW; Battery: 2 × 12V/165Ah

Tire 12.00-20; option 11.00-20

Oil tank L 400

Total weight kg 25000 25000 25000 25000 25000 25000

Loading Capacity kg 13870；optional 13750 13870；optional 13750 13540; optional 13420 13540; optional 13420 13540; optional 13420 12870; optional 12730

LXWXH mm 9800×2496×3048 9800×2496×3048 10350×2496×3048 10350×2496×3048 10350×2496×3048 11963×2496×3048

Wheel base mm 4300+1400 4300+1400 4575+1400 4575+1400 4575+1400 5800+1400

Front/Rear suspension (complete vehicle / chassis) mm 1500/(2625/1945) 1500/(2625/1945) 1500/(2900/2445) 1500/(2900/2445) 1500/(2900/2445) 1500/(3263/3025)

Track width (front / rear) mm 2022/1850 2022/1850 2022/1850 2022/1850 2022/1850 2022/1850

Min.

ground clearance mm 267 267 267 267 267 267

Approach / departure angle (vehicle / chassis) ° 16/(15/23) 16/(15/23) 16/(12/18) 16/(12/18) 16/(12/18) 16/(9/14)

Max.

Speed km/h 102 102 102 102 102 102

Max Climb Capability % 40 50 40 50 50 40

Min.

turning diameter m 19 19 20 20 20 24

Internal dimensions of container (L) × wide × High) mm 7100×2326×600 7100×2326×600 7650×2326×600 7650×2326×600 7650×2326×600 9280×2326×600

Container volume m3 9.9 9.9 10.6 10.6 10.6 13

Optional container side height mm 800(13.2) 800(13.2) 800(14.2) 800(14.2) 800(14.2) 800(17.2)
