Customized Dc Charging Connector - China
price: 40.00 Dollar US$

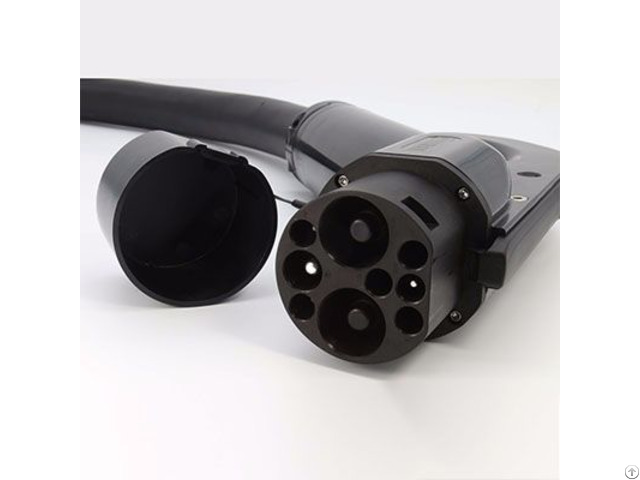

1 - This DC charge coupler is designed to charge electric vehicle.
2 - As per GB/T 20234.3-2015, it equips electronic locking device and temperature sensor, can fully meet customer requirment.
3 - Good user experience are guaranteed by optimized human engineering design, intergrationhousing design, fasionable appreance, smooth plug and unplug, comfortable grip.
Performance Parameters
Outer shell body: thermoplastic
Pins: Copper alloy, red copper
Rated Voltage: 250VAC
Rated Current: 80A/125A/200A
Contact Resistance: ≤0.05mΩ
Insulation Resistance: ≥500Ω(under normal temp.
condition)
Withstand Voltage: Line to line, line to ground≥2500V AC
Mechanical lifetime: ≥10000 cycles (no-load)
Insertion and separation forces: 80N＜F＜140N
IP degree: IP55(after insertion)
Operating Temperature: -40℃-50℃
Operating Moisture：＜95%(40℃)
Flame Retardant Grade: UL94V-0
Company Contact:
- Phone: 13521795092
- Address: Woer industry park, Lanjing North Road, Pingshan District, ShenZhen , Asian , China
- Email:
- Website: http://en.woerxny.com/
Published date: October 10, 2017
- Business Description: Shenzhen Woer New Energy Electrical Technology Co., Ltd was founded in 2003, as a wholly-owned subsidiary subordinated to Shenzhen Woer Heat-shrinkable Material Co., Ltd ( stock code: 002130).
It specialize in R&D, production, sales and technical support of harness, connector and laminated busbar, flexible joint that can be applied to EV automobile, wind energy, photovaltic filed.
