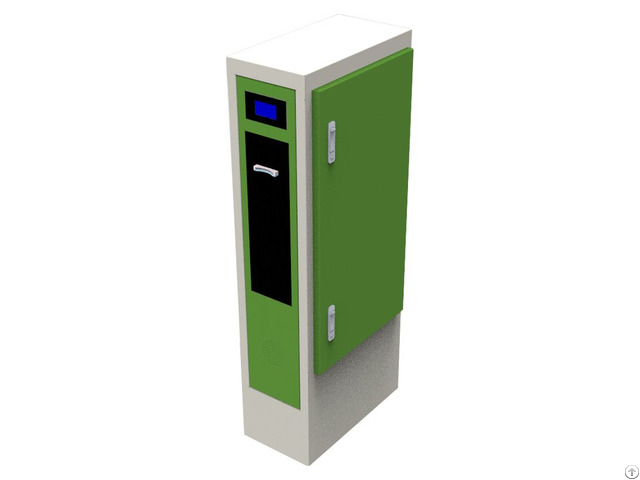

Parking Ticket Validation Machine - China

Lane Exit Station

Parking Ticket Validation Machine, Exit Card Validator Manufacturer China

Upon exit, parking users have options on how to pay for parking, users can pay at central automatic pay station or central manual pay station or exit pay station.

After paying at central pay station, parking users insert paid ticket into the Wiiparking Exit Station Ticket Verifier to open the gate.

The exit terminal retracts tickets for auditing purposes.

Features

Optional built-in IC/ID card reader for season parkers;

Read and recycle tickets, accurate, reliable and stable performance;

With lightning protection, overload protection, anti-jamming protection etc., and can work in severe condition;

Open and close barrier gate intelligently after ticker read successfully;

Friendly customer interface (LCD) and optional voice prompt module;

Remote access function thru software to realize the remote data querying and monitoring;

Working parameters can be easily modified, including time, date, exit address and validated time etc.

with regular computer keyboard;

Graceful appearance, succinct, high mechanical strength, with waterproof, fire prevention, etc.

;

Easy to operate with its humanized panel design, signet operation hints;

Support RS485, TCP/IP communication protocol;

Strong compatibility can directly work with most brands barrier gates, loop detector etc.

Optional 2 way or 4 way ticket-reading modes.

Tickets can be collected for audit purpose.

Technical Parameters

Product Name Exit station ticket verifier CP2

Power DC24V/AC 110V 60HZ/AC220V 50HZ

Peripheral Dimension L: 500mm W: 310mm H: 1250mm

Weight 60 KGS

System Platform ARM7

Power Consumption 30W(normal) ; 120W(max)

Working Temperature -35℃ ~+65℃

Cabinet Thickness 2mm

Communication Port TCP/IP/RS232/RS485/Wiegan d26
