Lpr Camera - China

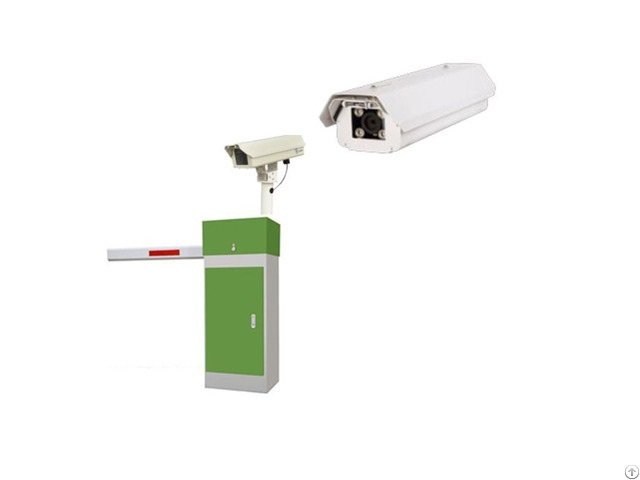

LPR Camera PRODUCT DESCRIPTION

The Automatic License Plate Recognition System (LPR system) refers to a technology that can detect vehicles on monitored roads and automatically extract vehicle license plate information (including English letters, Arabic numerals, and number plate colors) for processing.

The automatic license plate recognition system is one of the important components in the modern intelligent transportation system and it is widely used.

Based on digital image processing, pattern recognition, computer vision and other technologies, it analyzes the images or video sequences of the vehicles captured by the camera to obtain the unique license plate number of each vehicle, thereby completing the recognition process.

Through some follow-up processing methods, it can realize the functions of parking lot charging management, traffic flow control index measurement, vehicle location, car theft prevention, highway speeding automatic supervision, red light electronic police, highway toll station and so on.

For the maintenance of traffic safety, urban security, and prevention of traffic jams, the realization of automated traffic management has practical significance.

Features

Built-in high precision license plate recognition algorithm, industry leader of license plate recognition accuracy and recognition speed;

Mature video trigger technology can identify vehicles with 0~40km/h without parking card swiping or embedded geomagnetic coil;

Supports built-in black and white list management;

Non-motor vehicle filtration;


Support 150+ car sign recognition;

Support virtual coil unlicensed car detection;

Support 10 kinds of vehicle color recognition.

Technical Parameter

Hardware Index

Name Parking ALPR Camera

Model LPC08

Processor Hisilicon LPR chip

Sensor 1/3" Progressive Scan CMOS

Min.

Illumination 0.01Lux

Ele.

Shutter 1/25 secs to 1/30, 000 secs


Aperture CS Fixed Aperture

Lens 6m Prime Lens

Supplementary Lighting 4 LED light

Performance Index

LPR Accuracy ≥95%

LP Type All kinds

Trigger Mode Video/loop or both trigger Vehicle captured ≥99.5%

Video Output 1080P(1920×1080), 960P(1280x960), 720P(1280x720), D1(704x576), CIF(352x288)


Image Output 2 Megapixels JPEG


Wide Dynamic 100dB


Video Compression Format H.

264 High Profile, Main Profile, Baseline, MJPEG

Electrical and Interface Parameters

NI 10/100M, RJ45

Integration Feature ONVIF

Terminal blocks 3.5mm plugin connectors

IO interface 2 input/2 output

Audio interface 1 input/1 output

SD card SD2.0 Micro SD(TF), Max.

32G

Serial Interface RS485, RS232


Power AC220V


Power consumption ≤9W


Temp -30°~+70°C

Protection grade IP65

Voltage, surge protection 4KV


Size(mm) 452(L) *148(W)*120(H)

Weight 2.9KG

We are specialized in license plate recognition system produce LPR system.

Our products are very popular, if you are interested in our products, please contact us as soon as possible.

Company Contact:

• Posted By: Wiicontrol Information Technology Co.,Ltd.

• Phone: 0510-68002250

• Address: No. 789, Nanhu Avenue, Nanchang District, Wuxi City, Jiangsu Province, Wuxi, Jiangsu, China, Jiangsu , China

• Email:

• Website: https://www.wiicloudparking.com/

• Business Description: Wiicontrol Information Technology Co., Ltd. is a high-tech enterprise which specialized in commercial automation equipment parts research, development, production and sales services.

  Our company has strong research and development strength, providing the design, sample and production of machine & modules; meanwhile providing customization service of non-standard products, maintenance and upgrading of existing products as well as platform-level project development.

  What We Do

  Wiicontrol sets up embedded development department, software development department and mobile development department.

  We have successfully developed cloud parking platform, off-street parking, on-street parking, etc.

  series of parking products 2 - Application Scenarios: modern urban street, intelligent buildings, enterprises and institutions, government agencies, residential quarters, commercial complex and other places 3 - Overseas cases: products have been exported to Canada, the United States, Mexico, Guatemala, Peru, Chile, Poland, Serbia, Kazakhstan, Mongolia, South Korea, Thailand, Malaysia, etc.

  How We Do

  1 - Own factory ensures 200 set/month capacity and quality control in each procedure.

  2 - Own research and development team provides with custom product design and professional technical service.

  3 - Professional pre-sale and sale team provides professional service.

  4 - Effective after-sales service provides free life-time remote technical support and paid abroad site support.
