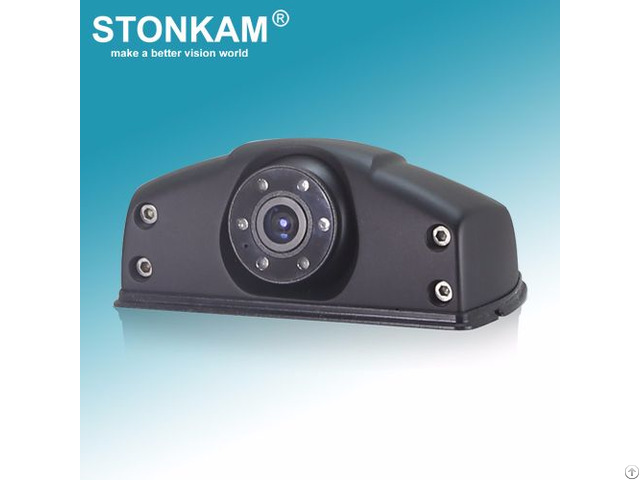

Waterproof 1080p Back Up Side View Camera - China

1080P

IP69K

Viewing angle: 150°

Night vision distance: 5m

DC power: 12V

Working temperature: -20ºC ~ +70ºC

Anti-vibration: ISO 16750-3 ( Max.

17.3G)

Image Device 1/2.9" CMOS Frame Rate 25 fps / 30 fps

Effective Pixels 1920(H) x 1080(V)

Pixel Size 2.8 μm × 2.8μm

Scanning System Progressive Scanning

Sync.

System Internal Resolution 1080P

Video Output 1.0Vp-p, 75Ohm Gamma Consumption 0.45 AGC Auto S/N Ratio Better than 52dB

White Balance Auto Electronic Shutter 1/25 (1/30)～1/50, 000 Seconds

BLC Auto Operating Temperature -20℃～70℃, RH 95% MAX.

Storage Temperature -30℃～80℃, RH 95% MAX.
