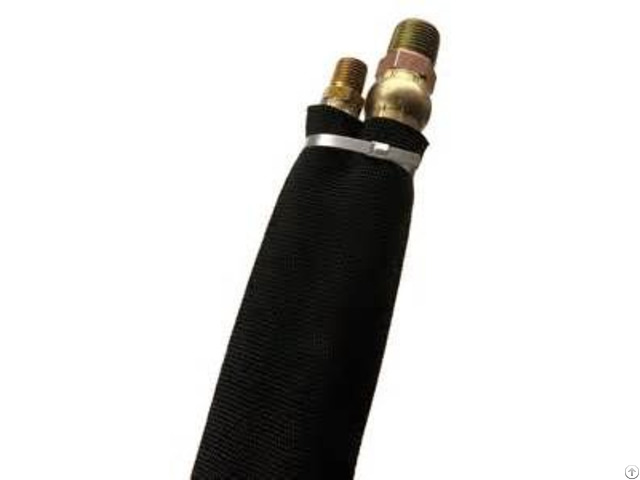

Hose Protector Polypropylene Woven Abrasion Sleeve - China

PHS Polypropylene woven abrasion sleeve is produced from polypropylene which is very hard-wearing and recyclable.

Polypropylene is generally acid and alkali resistant.

Features: The tight woven construction can provide excellent abrasion resistance and high degree of burst resistance.

Application: It is widely used to protect hydraulic pipes, rubber hose, plastic pipes, wire harness from damage, this kind of sleeve can also be used in industrial and construction fields where outstanding hose productions are needed.

Specifications: DATASHEET

Part number Flat Width Inside Diameter Meter for spool

mm mm meter

PHS-20 20 12 100

PHS-25 25 15 100

PHS-30 30 18 100

PHS-35 35 21 50

PHS-40 40 24 50

PHS-45 45 28 50

PHS-50 50 31 50

PHS-60 60 37 50

PHS-70 70 44 50

PHS-80 80 50 50

PHS-90 90 56 50

PHS-100 100 62 50

PHS-115 115 72 50

PHS-145 145 90 50

PHS-176 176 110 50

PHS-200 200 125 50 Technical Datasheet

Material Polypropylene

Working temperature -40℃ - +80℃

Flammability VW-1

Melting point +125℃

Standard Color Black

Standard Thickness 1 mm

MOQ 500 meter each size

Cutting tool Scissors Notes:

Special color upon request.

Special size, length, package upon request.

Customs LOGO upon request.
