High Temperature Insulation Fire Resistant Hose Sleeve - China

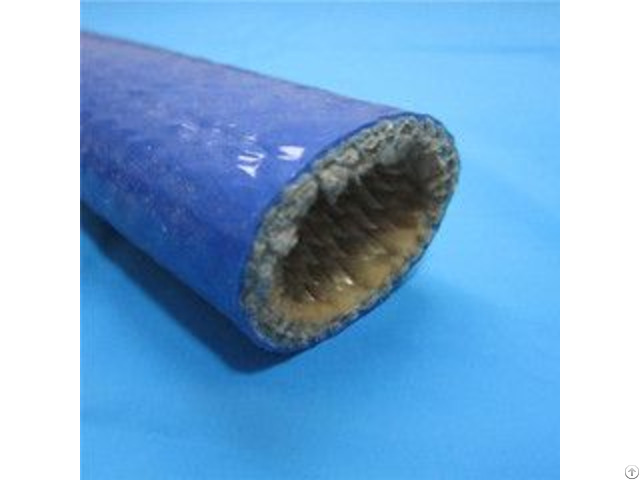

IFRS heat treated High Temperature heat insulation fire resistant hose sleeve for hoses & cables is made by special treated fiberglass braided sleeve coated with heavy silicone rubber, the fiberglass is after heat cleaned and get special tan colored.

Heat treated to removed starches, oils and other impurities that naturally occur in glass.

Features: It offers excellent short term flame protection and great insulation properties for high temperature.

Resistant to hydraulic fluids, oils and fuels and can protects against molten splash and flames.

Application: It’s mainly used in steelworks, glass and ceramic industry, in railway and some other fields.

Used to protect fuel lines, hydraulic and oil lines from heat and to prolong the life of wiring and hoses in case of fire so that critical systems can function longer.

Specifications:

Part Number Normal Inside diameter Meter for spool

Inches mm Dash # Meter

IFRS-6 1/4 6 -4 20

IFRS-8 5/16 8 -5 20

IFRS-10 3/8 10 -6 20

IFRS-11 7/16 11 -7 20

IFRS-13 1/2 13 -8 20

IFRS-16 5/8 16 -10 20

IFRS-19 3/4 19 -12 20

IFRS-22 7/8 22 -14 20

IFRS-25 1 25 -16 20

IFRS-29 1 1/8 29 -18 20

IFRS-32 1 1/4 32 -20 20

IFRS-35 1 3/8 35 -22 20

IFRS-38 1 1/2 38 -24 20

IFRS-41 1 5/8 41 -26 20

IFRS-44 1 3/4 44 -28 20

IFRS-48 1 7/8 48 -30 20

IFRS-51 2 51 -32 20

IFRS-57 2 1/4 57 36 20

IFRS-60 2 2/5 60 -38 20

IFRS-64 2 1/2 64 -40 20

IFRS-67 2 5/8 67 -42 20

IFRS-70 2 3/4 70 -44 20

IFRS-73 2 7/8 73 -46 20

IFRS-76 3 76 -48 20

IFRS-83 3 1/4 83 -52 20

IFRS-89 3 1/2 89 -56 20

IFRS-95 3 3/4 95 -60 20

IFRS-102 4 102 -64 20

IFRS-114 4 1/2 114 -72 20

IFRS-121 4 3/4 121 -76 20

IFRS-127 5 127 -80 20

IFRS-152 6 152 -96 20 Technical Datasheet

Material Silicone, fiberglass

Working temperature -40℃ - +260℃

Flammability VW-1

Melting point +1650℃

Standard Color Iron oxide red

MOQ 20 meter each size

Cutting tool Scissors Notes: The part NO.

will be by BK for black color, GR for gray color, OR for orange color, BL for blue color.

Special thickness upon request Special length or packing upon request.

Customs LOGO upon request.
