Denso 5ser09c For Toyota Yairs Auris Auto Ac Air Conditioning Compressor - China

Our factory can produce many kinds of auto Air Conditioner Compressors with good quality and one year quality warrantee.

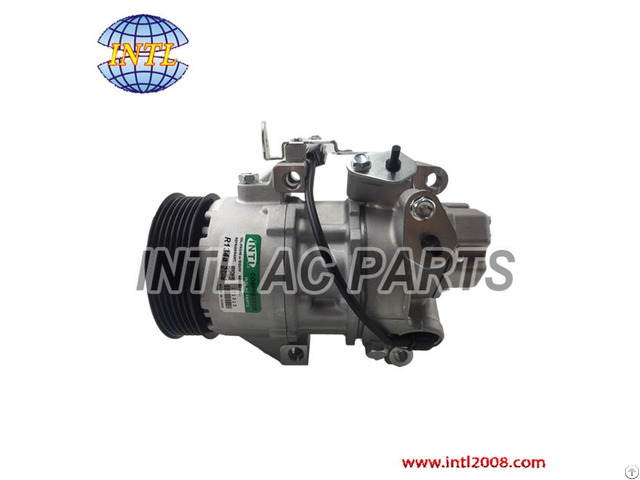

DENSO 5SER09C Toyota Yairs Auris ac compressor

Specification:

Model number: INTL-XZC1167

Type: DENSO 5SER09C

Pulley: 6PK

Volt: 12V

Clutch: 100mm

Number of channels: 6

Diameter pulley: 100 mm.

Compressor capacity: 90 cc.

Oil capacity: 150 ml.

Inlet diameter: 18.3 mm.

Output diameter: 15.5 mm.

Models: 1.3 VVTi - 1.4 D4D - Special

Notes:

OEM#

88310-0D210 883100D210 447150-0340 4471500340 DCP50248 DCP50305 88310-0D210 88310-0D211 88310-0D212 4472601780 88310-52592 88310-52591 88310-52590 88310-1A820 88310-1A800 88310-0D330 88310-0D320 DCP50304 DCP50305 DCP50246

447190-5223 447190-5222 447190-522 447190-5220

Apply:

For TOYOTA Auris 1.4 D4-D (07-)

For TOYOTA Auris .

33 (09-) Basic

Requirements when servicing an A/C system:

1, The Accumulator or Filter Drier should always be replaced when the Air Conditioning System is opened.

For warranty Purposes buyer must show evidence of receiver/drier replacement.

In some vehicles the drier comes attached to the condenser so it must replaced as well

2 - A/C system must be clean and free of debris and contaminants.

In most cases components can be flushed; however in some instances it may be necessary to replace the condenser or other items.

3 - Orifice tube must be replaced; expansion valve must be inspected and replaced if dirty or defective.

4 - Correct amount and type of oil must be used.

Please refer to the OE manufacturer for this information.

5 - Prior to refrigerant charging, full vacuum must be done for a minimum of 45 minutes.

In humid climates or during cooler days, this time should be increased to effectively remove air and boil off moisture.

6 - The Orifice Tube, if equipped, should always be replaced and the Expansion Valve, if equipped, should at least be inspected for proper operation if not replaced.
