Com F Fuel Injection Pump Test Machine - China
price: contact company for price
COM- F fuel injection pump test machine :
>>>FUNCTIONS
1 - Measurement of each cylinder’s delivery at various rotation speeds;
2 - Checking of each cylinder’s injection time with static state;
3 - Checking of the mechanical speed governors;
4 - Checking of the electromagnetic valve of distributor pumps;
5 - Checking of the pneumatic speed governors’ positive pressure performance;
6 - Checking of the pneumatic speed governor’s vacuum performance;
7 - Checking of sealing of fuel injection pump body.
>>>CHARACTERI STICS
1 - Changing frequency changing rotation speed;
2 - Low fall of rotation speed and high output torque;
3 - High measurement precision;
4 - The functions of over voltage, overload and short circuit protection;
5 - Ultra low noise;
6 - Operating position: arbitrary side of the two work sides of the test stand;
7 - Rotation speed, count are displayed in digits mode, and air pressure is displayed on the mechanical gauge;
8 - Built- in air resource.
>>>TECHNICAL PARAMETERS
Adjustable rotation speed range
0~4000RPM
Double series of graduates
45CC, 150CC
Volume of oil tank
60L
Test oil filtering unit
5μ
DC.
Supply
12/ 24V
Feed pressure
0~0.4MPa ( low) , 0~4MPa ( high)
Air pressure ( MPa)
- 0.03~0.3
3- phase power supply
380V/ 50Hz or on request
Flywheel inertia’s moment
0.8kg· m2
Center height
125mm
Output power
7.5kw, 11kw, 15kw, 18.5kw or on request
Overall dimensions ( mm)
1800×960×1750
Net weight ( kg)
900
Company Contact:
- Posted By: Taian Common Rail industry & trading
- Phone: 00865386527066
- Address: east of dongyue street , TAIAN , China
- Email:
- Website: http://www.com-rail.com
Published date: June 20, 2014
- Business Description: Our company produces the fuel injection pump test benches, high pressure common rail test benches, and EUI at worldwide advanced level.
We can supply you with all kinds of BOSCH, DENSO, DELPHI, Caterpillar original spare parts.
Related listings
-

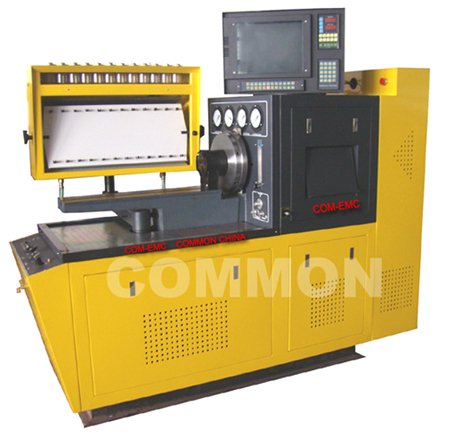

Com Emc Fuel Pump Pressure TesterAutomobile - Parts - Taian Common Rail industry & trading - China - June 20, 2014 - contact company for priceCOM- EMC fuel pump pressure tester : >>>FUNCTIONS 1. Measurement of each cylinder’s delivery at various rotation speeds; 2. Checking of each cylinder’s injection time with static state; 3. Checking of the mechanical speed governors; 4. Check...
-
