Ig 005 Graphite Reinforced Composite Sheet Lined With Stainless Steel Wire Mesh - China

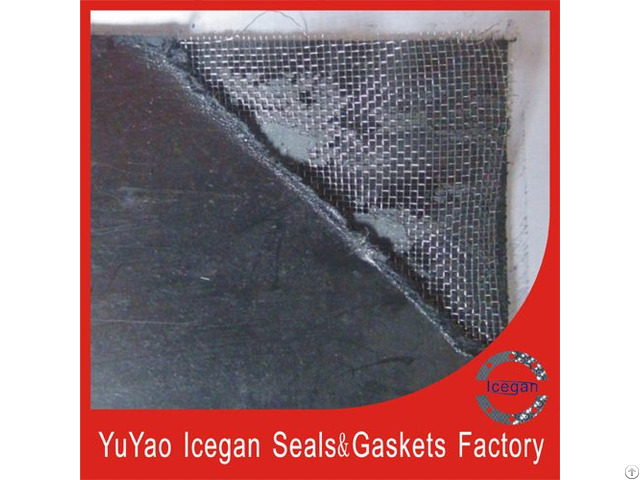

IG-005 graphite reinforced composite sheet (lined with stainless steel wire mesh)

Graphite reinforced composite panels for the graphite plate and stainless steel wire mesh after rolling adhesive composite forming, basic structure is: graphite plate + stainless steel wire mesh (304 l, 316 l) + graphite plate.

Graphite reinforced composite sheet with super seal effect, high temperature resistance, corrosion resistance, long service life and environmental protection, etc.

Mainly used in the manufacture of all kinds of sealing gaskets, such as automobile engine with cylinder pad, chemical pipe with flange gasket sealing gasket and a variety of mechanical joints.

At the same time has good lubricity, non-stick cylinder, easy to repair replacement characteristics.

Quick Details

Place of Origin: Ningbo, China (Mainland)

Brand Name: ICEGAN

Model Number: IG-005

Material: graphite with inside Stainless steel wire mesh, graphite and Stainless steel wire meshl

Shape: Flat Gasket

Standard or Nonstandard: Standard

Type: graphite Gasket Sheet The performance parameters

Density: 1.3 to 1.5 g/cm after

Compression ratio: 30% 40%

Resilient rate: 15% 30%

Permeability (cm3 / min) : 0.8 or less

Pressure (N/was) : 48 or higher

Temperature: - 200-650 ℃

Regular size:

500 * 500 mm, 500 * 1000 mm, 1000 * 1000 mm

Thickness:

1.0 mm and 1.2 mm, 1.5 mm, 2.0 mm

Other size can produce according to customer's need

Packaging & Delivery

Packaging Details: 1000-1500 KGS per wooden pallet, or 50 KGS per wooden case, or your requirements.

Delivery Detail: 15-30 days after received your deposit
