Central Locking System Db801c 41 - China

Top level central locking system with PTC, Promata-SB motors and double

insulated cables.

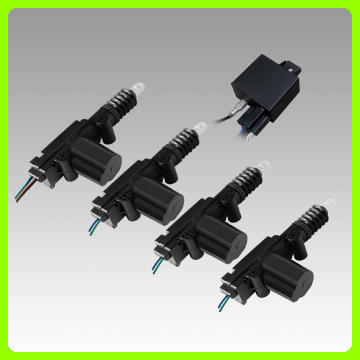

DB801C-41(4-door system, driver-door control)

DB801C-42 (4-door system, two front-door controls)

DB801C-21(2-door system, driver-door control)

This gun-type central locking system uses high quality Promata-SB motor which has a push/pull force of over 5 - o kg even after 100, 000 times life cycle.

The system uses double insulated cables and has PTC overload protection.

The lock/unlock time can be as long as 0.4 seconds.

Actuators with fix or swivel heads can be ordered according to your needs.

The system comes with a minimum 3-year warranty.



- 6-pin plug style ECU

- Original Nylon and POM

- Double insulated cables

- Compatible with car alarm system

- PTC overload protection

- Life cycle: over 100, 000 times

- Push/pull force: ＞ 5.0 kg

- Ultrasonic welding and fastened with rivets, durable, waterproof & dustproof

- Fix and 360°swivel heads available

- Input voltage: 9~16VDC

QTY: 20pcs/CTN

G.

W: 22.7kg

Meas: 71×45×16cm
