Прибор для испытаний на истирание и пиллинг Qs Martindale - China

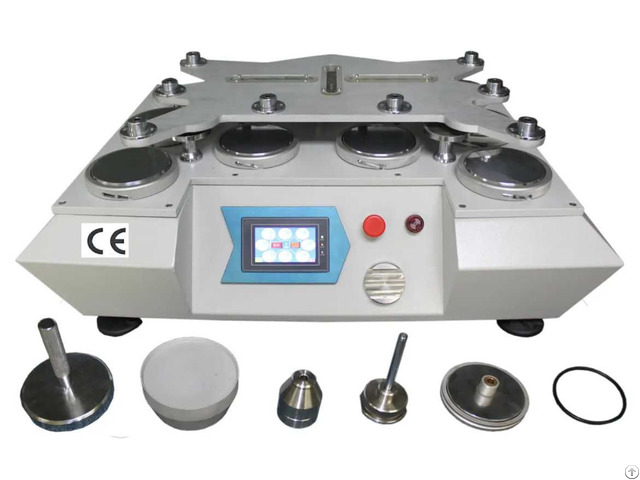

Martindale Abrasion and Pilling Tester The Martindale Abrasion and Pilling Tester is used to test the abrasion and pilling properties of various structural fabrics.

The test specimen is subjected to low-pressure, continuous commutation friction with a certain abrasive material, and the degree of wear and pilling can be evaluated in comparison with standard parameters.

The instrument adopts movable specimen fastening assembly, which can be removed at any time without affecting other specimens, not only to achieve rapid and independent testing of the specimen, but also to ensure the accuracy of the measurement of the same period of friction, which is the recognized fastening method of BSEN ISO12947-1: 1999 - This instrument is equipped with electronic preset batch timer and total aggregate counter, specimen holder and negative Martindale abrasion resistance and pilling tester technical parameters.

Available in 4, 6 and 8 head models.

Display mode: LED display number of stations: 6 test times: 1 ~ 99999 weight of the pressurized object: A, wear resistance test: 200 ± 1g wear-resistant clamp sample assembly, clothing sample weight 395 ± 2g, furniture decorative sample weight 594 ± 2g B, balling performance test: balling clamp sample assembly 155 ± 1g, weighted block 260 ± 1g relative movement speed: 50 r / min min effective diameter of abrading tableEffective diameter of abrading table: φ121mm effective friction diameter of abrading head: A, wear resistance test: φ28.8mm, B, balling performance test: φ90mm External dimensions: 880 × 600 × 420mm (L × W × H) Power: AC380V, 180W Martindale abrasion resistance and pilling performance tester conforms to the following standards bs 3424/5690, iwto 40-88, bs en 388/530, iwstm 112/196, astm 4966/4970 is 12673, jis l1096, sfs 4328, pr en iso 12947-1, pr en iso 12945-2, satra TM31, iso 20344 ps: (11-22)

ps: (WLJCDM809)

Company Contact:

• Posted By: Qinsun Instruments Co., Ltd

• Phone: +862167800179

• Address: No.258 Banting Road, Songjiang District Gu Dai Road, Shanghai, SHANGHIA , Shanghai , China

• Email:

• Website: https://www.qinsun-lab.com

• Business Description: Qinsun Instruments Co., Ltd was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

  Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

  Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.
