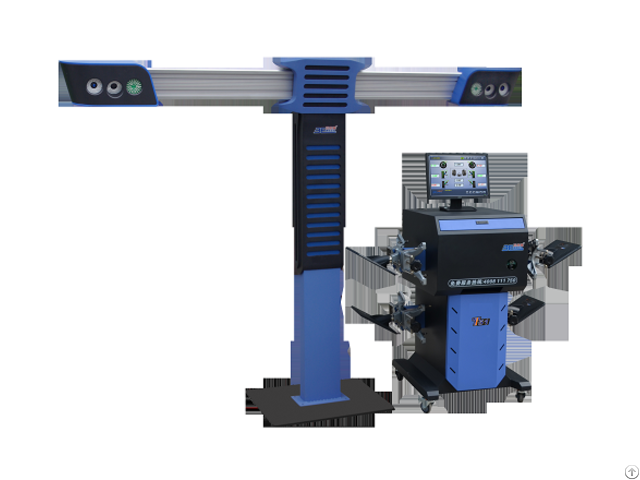

Wheel Aligner T51 - China

Measurement accuracy up to 0.01.

Customer feedback reminder timely reminds workshop to follow up with car situation and maintain old customer.

Black box records the operation situation of wheel aligner, effectively improve the efficiency of problem-solution.

Dynamic graphics shows variation value of every angle.

Voice remind function.

3D animation demonstration make it easier to learn.

Rub radius measure the steering wheel holder whether symmetrical or not, then to keep stability.

Free vehicle-pushing is not restricted by levelness of platform.

Additional measurement can realize angle analysis for chassis.

Large LCD screen display.

Measurement Range & Precision:

Measurement Items

Measurement Precision

Measurement Accuracy

Camber

±0.01°

±8°

Caster Angle

±0.03°

±19°

Front Wheel K.P.I.

±0.02°

±19°

Toe

±0.01°

±2°

Rear Wheel Thrust Angle

±0.02°

±2°

Rear Wheel Shaft Deflection

±0.02°

±2°

Wheelbase Difference

±0.02°

±2°

Front Setback

±0.02°

±2°

Rear Setback

±0.02°

±2°

Wheelbase

±0.25cm

<265cm

Tread

±0.25cm

<533cm
