Launch Creader 619 Obdii Eobd Code Reader Supports Abs Srs Diagnostic - China

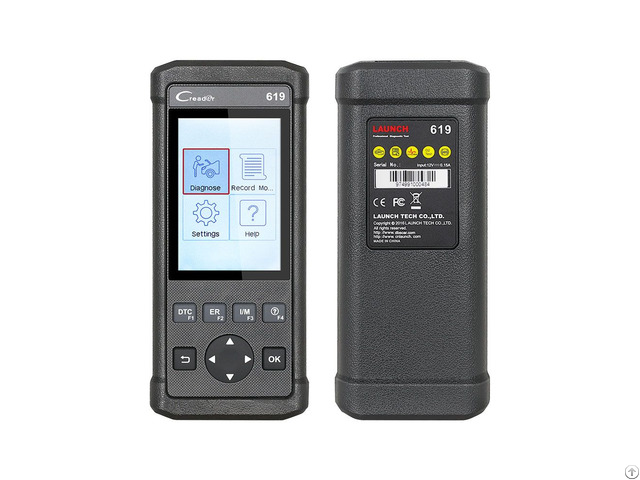

Launch CReader 619 OBD2 Code Reader Diagnostic Scanner CReader 619 is a multipurpose CReader with a large-size color display.

It provides full OBDII/EOBD diagnostic functions, and also ABS and SRS system diagnostic functions.

It is a practical car diagnostic tool that helps one resolve common faults in daily car maintenance.

Highlight: EASY TO USE: All-in-one screen and easy-to-use hotkeys make the 619 an ideal tool for the DIYer and professional technicians alike.

Thoughtful design elements like Quick access with hot keys; Durable buttons with metal covers to prolong life; and Extended cover connections to maximize protection will allow this unit to last through years of constant use and abuse.

FULL OBD FUNTION: CReader 619 provides full OBDII/EOBD diagnostic functions, Read dynamic data streams; Read readiness status; Turns off Malfunction Indicator Light (MIL); Query freeze frame data; Read current DTCs; Clear DTCs; O2 Sensor test; On-board monitor test; Read pending DTCs; On-board system or component control; Read vehicle information; Read permanent DTCs.

Works on ALL 1996 and newer OBD II & CAN domestic or import vehicles.

SPECIAL FUNCTION: CR6011 provides the ABS and SRS diagnostic functions, Read DTCs, clear DTCs, and read data streams for the ABS system and the SRS system.

Works on 46 car models, see the description for more models.

WHAT’S IN THE PACKAGE: OBD Scanner; OBD II Connector and cable; USB cable; One Bag; One Protective Case; Quick start guide in three languages (English, France and Spanish); Free scanner updates via the internet, Multilingual Support (English, French, Spanish, German, Russian) Support Languages:

English, Spanish, French, Russian, German, Portuguese, Japanese, Chinese

​ Product Functions:

1 - OBD full functions 1) Read dynamic data streams and MIL 2) Read readiness status 3) Query freeze frame data 4) Read current DTCs 5) Clear DTCs 6) O2 sensor test 7) On-board monitor test 8) Read pending DTCs 9) On-board system or component control 10) Read vehicle information 11) Read permanent DTCs

2 - Color and graphical display of data streams

3 - Query DTCs

4 - Free update of USB interface internet

5 - Multilingual support

6 - Data record and replay

7 - Read DTCs, clear DTCs, and read data streams for the ABS system

8 - Read DTCs, clear DTCs, and read data streams for the SRS system

9 - Print data via PC

10 - With the same functions as AUTEL al619 - Specifications: Screen: 4.0"TFT 320*480 dpi Voltage range: 9-18V

Operating Temperature: 0~ 50 Environment Temperature: -20~70

Dimension: 195mm*86mm*32 mm (7.6" *3.4" *1.2") Weight: 460g (pending) Register & Update:

The tool can be updated via USB cable.

Note: make sure the PC has an Internet connection.

1 - Decompress and install it on your computer (compatible with Windows XP, Windows7, Windows8 & Windows10)

There are 2 methods available to update your tool.

You may choose one of the following to proceed.

Method 1: Via memory Card (recommend)

1 - Launch the update tool, and type in Product Serial Number (located at the back of the tool)

2 - Click [Device upgrade] to enter the sign-up page.

3 - Enter the information and click [Summit]

Method 2: Via USB Cable

1 - Connect one end of the USB cable to the USB port of PC, and the other end to the tool

2 - If a newer version is found, a screen similar to Fig A will appear.

Press [OK] to configure this tool as a USB device.

3 - Launch the update tool on your PC, [Device upgrade] box will appear.

Type in the Serial Number and Choose the desired interface language and then click [Summit] to enter update center.

4 - Select the updates you would like to perform or click ‘Select all’, and then click [Download] to start downloading.

5 - Once all steps are complete, restart your tool, it will prompt you to upgrade, click [OK] to start updating, it may take several minutes to finish the update.

Then your tool is now ready for use.
