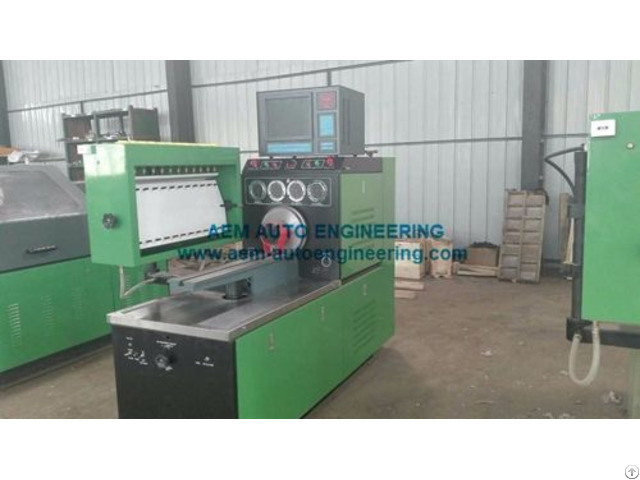

12psb Diesel Fuel Injection Pump Test Bench - China

CHARACTERISTICS: 1 - Main motor frequency conversion adjust speed(0~4000 r/m adjust) 2 - Small value of reduction of speed, large output torque 3 - High measurement accuracy 4 - The function of overvoltage, overload and short circuit 5 - Many kinds of rotation speed presetting 6 - Constant temperature controlled 7 - Ultra low noise 8 - Buit-in air suppply 9 - Advanced angle, rotation speed, count, temperature, Pressure, rack bar are displayed on 17" LCD(optional) 10 - Operating position: Arbitrary side of the two work sides of the test bench 11 - Built-in lube system 12 - Screen display and digital display operation system, can operate separately FUNCTION: 1 - Test each cylinder's oil supply capacity at various rotation speed 2 - Test each cylinder's injection time with static state 3 - Test the mechanical speeds governor 4 - Test electromagnetic valve of distribution pump 5 - Check pressure compensators 6 - Test the sealing performance of injection pump 7 - Test the oil-return quantity of distribution pump 8 - Test inner pressure distributor pump.

9 - Checking of the pneumatic speed governor's vacuum performance 10 - Measurement of rack travel.

11 - Measurement of advance angle.

12 - Ten kinds of rotation speeds presetting 13 - Measurement of speed governor curve(optional) 14 - Test the injection angle of lube (optional) 15 - Large-scale data base, search and print easily(optional) TECHNICAL PARAMETERS: 1 - Rotation speed: 0~4000 r/m 2 - Double series of graduates: 45cc, 150cc(as request) 3 - Volume of diesel fuel tank: 60L 4 - Temperature auto control: 40 5 - Test oil filtering unit: 5μ 6 - D.

C.

Supply: 12V/24V 7 - Feed pressure: Low: 0~0.4Mpa High: 0~4Mpa 8 - Air pressure: Positive: 0~0.25Mpa Negative: -0.05~0Mpa 9 - Volume of motor oil tank: 40L(optional) 10 - Motor oil adjust pressure: 0~1Mpa(optional) 11 - Flywheel inertia: 0.8KG@M2 12 - Center height: 125mm 13.3 phase power resource: 380V/50Hz or 220V/60Hz 14 - Output power resource: 7.5KW, 11KW, 15KW, 18.5KW, 22KW, 30KW.
