Ingke Ykm8 Ptb0204a Direct Substitute Te 3 2172068 2 4 P Female Circular Connector Receptacle - China

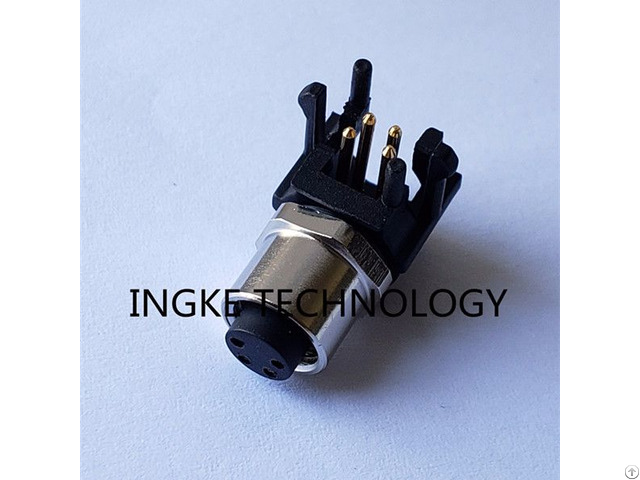

INGKE YKM8-PTB0204A Direct Substitute TE 3-2172068-2 4 P Female Circular Connector Receptacle Part Number: 3-2172068-2

Made in China: YKM8-PTB0204A

Original Manufacturer: Ingke Technology

Supply Ability: 3200K-PCS/Month

Series: M8

Packaging: Tray

Connector Type: Receptacle, Female Sockets

Number of Positions: 4

Shell Size - Insert: M8-4

Mounting Type: Panel Mount, Through Hole, Right Angle

Mounting Feature: Bulkhead

Termination: Solder

Fastening Type: Push-Pull

Shell Material: Brass

Shell Finish: Nickel

Contact Finish - Mating: Gold

Ingress Protection: IP68 - Dust Tight, Waterproof

Features: Board Guide, Board Lock

Shielding: Shielded

Current Rating (Amps): 4A

Voltage Rating: 50VAC, 60VDC

Operating Temperature: -40°C ~ 85°C

Applications: Automotiv e, Industrial Ingke Technology Mass production of the following models;T4011008041-000 T4030014041-000 T4040014041-000 T4040034041-000 T4041037041-000 T4043014041-000 T4031017041-000 T4013008041-000 T4012008041-000 T4011019041-000 T4013019041-000 T4012019041-000 1838839-2 T4032014041-000 T4033014041-000 T4010019041-000 3-2172091-2 3-2172067-2 T4010008041-000 T4042014041-000 T4041017041-000 1838838-2 3-2172068-2 1814445-2 3-2172093-2 1-2120954-1 3-2172089-2 3-2172069-2 3-2172092-2
