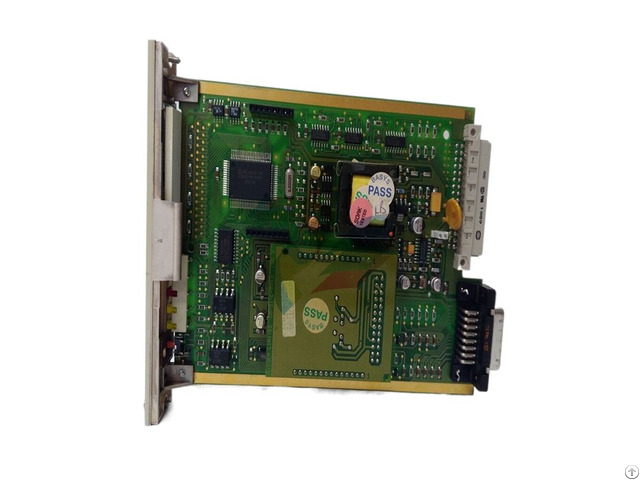

Honeywell Cc Paix01 51405038 275 High Level Analog Input Module - China

Honeywell cc-paix01 51405038-275 high level analog input module product overview brand: honeywell (honeywell) model：cc-paix01 specification no: 51405038-275 type: high-level analogue input module product features high precision and stability: the module adopts advanced circuit design and technology with high-precision analogue signal processing capability, which is able to operate stably for a long time in industrial environment.

multi-channel input: providing multiple analogue input channels, it can receive and process multiple analogue signals at the same time, which improves the flexibility and efficiency of the system.

powerful system capability: the module has a built-in real-time clock and can be connected to the ms-tp channel of the cp-ipc network controller, which supports integration with enterprise building integration (ebi) systems.

easy programming and configuration: optional comfortpoini studio workstation for programming configuration, sensitive and convenient, reducing the user's operating difficulties.

rich hardware interface: provide ms-tp port, rs232c port and other hardware interfaces, support a variety of communication rates and connection methods.

good environmental adaptability: the operating temperature range is 0℃~50℃, the storage temperature range is -20℃~70℃, and the relative humidity is 5%~93% (no condensation), adapting to a wide range of industrial environments.

technical specifications processor: coldfire 512x, 60mhz, 32-bit high performance processor is selected.

memory: 256kb flash memory, 32kb ram, with gold capacitors for 72-hour power-off data maintenance.

analogue inputs: 5ai, m/d conversion resolution 12bit.

the first 2 ai are reserved for use as wall module and room temperature sensor inputs, the other 3 can be used as 0-10vdc, ntc20k or digital inputs.

digital outputs: 8d0 (ac bi-directional thyristor switch triac outputs).

digital inputs: 4di voltage-free contact inputs, 1 di capable of being used as a 15hz pulse input for energy meter totalisation.

operating voltage: 24vac ±20%, 50/60hz, 7va.

enclosure material: abs plastic.

protection rating: ip20 - installation method: guide rail type or wall-mounted type.
