High Quality NBR Material COMBI Black Original Agricultural Oil Seal

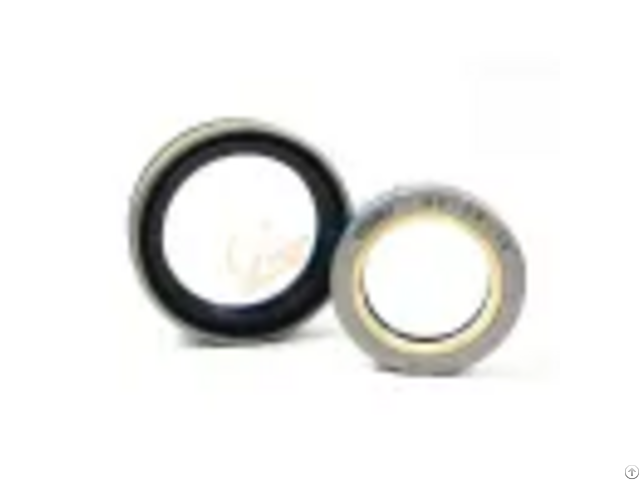

COMBI oil seal

The combination seal composed of standard SC/TC/DC shaft sealing ring and polyurethane anti pollution guide plate is an indivisible entity connected by a metal frame, especially with the huge ability to form an anti pollution barrier.

The material and design of this polyurethane cooler component form a barrier to external impurities, making the combination seal highly reliable.

Application scope: Combination oil seals suitable for extreme wear applications.

The oil seal and dust seal are combined in a metal casing, Product features:

Design: Special model for consultation

It is composed of a regular oil seal and another auxiliary sealing ring, mainly to prevent external pollutants from entering.

The sealing lip is equipped with springs

Equipped with dust lips

Mainly used for various purposes with high pollution, such as transmission shafts for off-road vehicle axles.

When subjected to significant rotational or translational motion, it is best to use it instead of a box type combination oil seal

Product advantages:

Long working life

Optimized design for sealing and dustproof lips, with strong resistance to pollutant invasion

Performance in preventing the intrusion of external pollutants

Extremely high performance in preventing external pollutants from invading, especially suitable for preventing dry pollutants.

Recommended applications:

Agricultural machinery

Driving parts of agricultural or industrial machinery

The driving part of rotating moving parts, or the motion axis that sometimes experiences dry friction.

Material formula:

Nitrile rubber: code 75 NBR 106200; Color: Black; Hardness: Shore A 75 degrees.

Fluorine rubber: code 75 FKM 595; Color: reddish brown; Hardness: Shore A 75 degrees.

Metal frame: Non alloy steel DIN 1624-EN10139

Spring: Spring steel DIN 17223

Pollutant scraper: Polyurethane (AU) Cassette seals are sophisticated sealing solutions designed for superior system reliability and extended lifespan.

Comprising a sleeve, a sealing lip with a spring, and multiple anti-dust lips integrated into a labyrinth system, these seals offer robust protection against external pollutants.

Their advanced design not only enhances reliability but also reduces the need for shaft maintenance during replacement.
