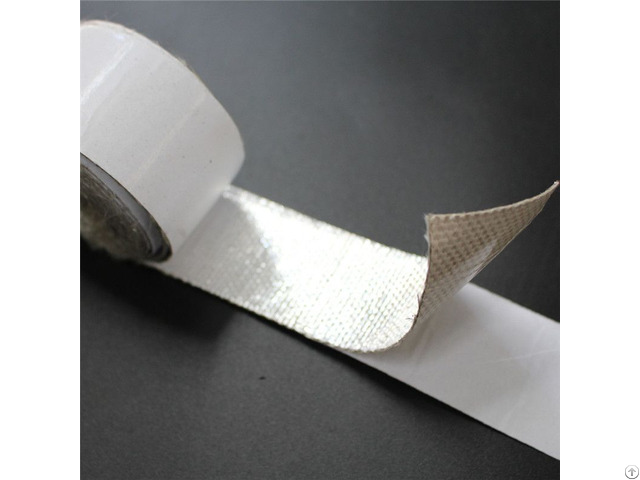

Heat Reflective Aluminum Fiberglass Tape - China

FGT-AL Heat Reflective Aluminum Fiberglass Tape made by heat reflective aluminum coated with fiberglass tapes.

These heat reflective materials generally reflect 95 to 98% of the infrared heat striking its surface.

Features The tape is overlaped by 50% when wraping, which provides the entire assembly with stability.

Safety wire, clamps, ties or pure silicone tape can be used to secure the tape in place after installation.

Application It is used to protection of industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires, cables, tube and pipe from exposure to high and extreme heat conditions.

Specifications DATASHEET

Part number Width Length

mm m

FGT-AL-25 25 30

FGT-AL-38 38 30

FGT-AL-50 50 30

FGT-AL-75 75 30

FGT-AL-100 100 30

FGT-AL-125 125 30

FGT-AL-150 150 30

FGT-AL-200 200 30

Technical Datasheet

Material Fiberglass, aluminum

Working temperature -40℃ - +260℃

Flammability VW-1

Melting point +537℃

Standard Color Silver

Standard thickness 1.5 mm

MOQ 100 meter each size

Cutting tool Scissors Notes: Special thickness and width upon request Special length or packing upon request.
