Heat Reflective Aluminized Kevlar Aramid Fabric - China

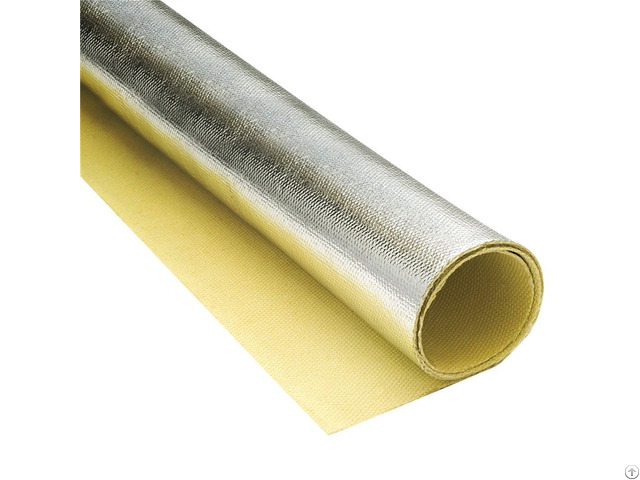

ARF-AL heat reflective Aluminized Kevlar Aramid Fabric is made by heat reflective aluminum and pure aramid fiber.

Features Aramid fiber can be sued on bulletproof products, protection and other possibility.

It is strong fiber, has the advantages of high strength, high tensils and low density.

The aluminum coated will reflect heat.

Application It is excellent for use in the construction of removable insulation pads where more severe conditions exist.

Also used in weld spatter protection of equipment and personnel, heat shield and splash curtains.

Specifications DATASHEET

Part Number Yarn Density(10mm) style Thickness Width Length weight

Wrap Fill mm cm m g/sqm

ARF-AL-9101 1100dtex 7 7 Plain 0.2 100 100 154

ARF-AL-9102 1100dtex 8 8 Plain 0.22 100 100 178

ARF-AL-9103 1100dtex 9 9 Plain 0.25 100 100 200

ARF-AL-S9103 1210dtex 7.5 7.5 Plain 0.25 100 100 200

ARF-AL-9104 1670dtex 5.5 5.5 Plain 0.23 100 100 185

ARF-AL-9105 1670dtex 6 6 Plain 0.24 100 100 200

ARF-AL-9106 1670dtex 7 7 Plain 0.26 100 100 235

ARF-AL-S9106 1670dtex 5.5 5.5 Plain 0.24 100 100 200

ARF-AL-9107 2200dtex 6 6 Plain 0.29 100 50/100 265

ARF-AL-9108 2200dtex 6.8 6.8 Plain 0.35 100 50/100 300

ARF-AL-9109 3360dtex 4.5 4.5 Plain 0.35 100 50/100 305

ARF-AL-9110 3360dtex 6.1 6.1 Plain 0.51 100 50/100 410

ARF-AL-9111 3360dtex 6.8 6.8 Plain 0.56 100 50/100 460

ARF-AL-S9111 3360dtex 6 6 Plain 0.54 100 50/100 450

ARF-AL-9201 1100dtex 8 8 Twill 0.22 100 100 178

ARF-AL-9202 1100dtex 9 9 Twill 0.25 100 100 200

ARF-AL-S9202A 1210dtex 10 10 Twill 0.34 100 100 270

ARF-AL-S9202A 1210dtex 13 13 Twill 0.44 100 100 350

ARF-AL-9203 1670dtex 6 6 Twill 0.24 100 100 200

ARF-AL-9204 1670dtex 7 7 Twill 0.26 100 100 235

ARF-AL-S9204 1670dtex 11.5 11.5 Twill 0.51 100 50/100 410

ARF-AL-9205 2200dtex 6 6 Twill 0.29 100 50/100 265

ARF-AL-9206 2200dtex 6.8 6.8 Twill 0.35 100 50/100 300

ARF-AL-9207 3360dtex 6.1 6.1 Twill 0.51 100 50/100 410

ARF-AL-9208 3360dtex 6.8 6.8 Twill 0.56 100 50/100 460

ARF-AL-S9208 3360dtex 8 8 Twill 0.7 100 50/100 600 Technical Datasheet

Material Aramid, aluminum

Working temperature -196℃ - +204℃

Flammability VW-1

Melting point +537℃

Standard Color Yellow

MOQ 100 meter each size

Cutting tool Scissors Notes: Special thickness upon request

Special length or packing upon request.
