Heat Reflect Shield Tape With Adhesive Backing - China

FGT-AL-PSA Heat Reflect Shield Tape with Adhesive Backing made by heat reflective aluminum and fiberglass, then with PSA adhesive backed.

The PSA have acrylic or silicone material.

The tape is overlaped by 30% when wraping, which provides the entire assembly with stability.

Product design can be in die-cut, tape or custom geometric shapes.

Pressure sensitive adhesives may be used for the product to be adhered directly to component or mechanical attachments such as snaps and clips may be integrated into the design.

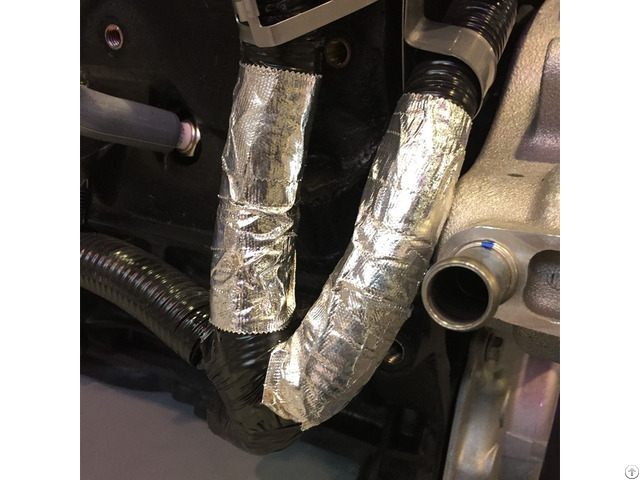

Features Paper release liner makes for quick and clean application Operational temperature range of -50°C to 260°C Application It is used to protection of industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires, cables, tube and pipe from exposure to high and extreme heat conditions.

Specifications DATASHEET

Part number Width Length

mm m

FGT-AL-PSA-25 25 30

FGT-AL-PSA-38 38 30

FGT-AL-PSA-50 50 30

FGT-AL-PSA-75 75 30

FGT-AL-PSA-100 100 30

FGT-AL-PSA-125 125 30

FGT-AL-PSA-150 150 30

FGT-AL-PSA-200 200 30

Technical Datasheet

Material Fiberglass, aluminum

Working temperature -40℃ - +260℃

Flammability VW-1

Melting point +537℃

Standard Color Silver

Standard thickness 0.2, 0.8, 1.5, 2.0, 3.0MM

MOQ 500 meter each size

Cutting tool Scissors Notes: Special thickness and width upon request Special length or packing upon request.
