Grease Distributor Lubrication System Divider Valve - China
price: 29.00 Dollar US$
Its feature is stable performance and convenient maintenance.
Furthermore each lubrication branch in one distributor group works separately and each other is not affected.
1 - The pressurized grease from the mainline forces the umbrella valve in the distributer to move upward.
2 - When the valve seals the center port, the high-pressure grease pushes the piston to move upward to discharge the grease remained in the upper chamber in the last cycle.
3 - When the piston is forced to the top of the chamber, the discharge finishes.
4 - When the pump module stops working, the unloading valve opens, the high-pressure grease in the mainline backflows through the unloading valve, the system pressure decreases quickly, the piston moves back under the action of the spring, the umbrella valve restores to seal the inlet, and the piston forces the grease in the lower chamber to the upper chamber through the center port and the grease supplied for the next cycle is prepared at the same time.
Max Pressure: 6.3MPa
Output Volume: 0.1, 0.2, 0.4ml/cy
Grease: NLGI—000#, 00#, 0#, 1#
Company Contact:
- Posted By: autol
- Phone: 8637186258298
- Address: No.96, Hehuan Street, High-Tech Development Zone, Zhengzhou, China, zhengzhou , henan , China
- Email:
Published date: February 21, 2017
- Business Description: one of the professional manufacturer in centralized lubrication system, is dedicated to developing the centralized lubrication systems
Related listings
-

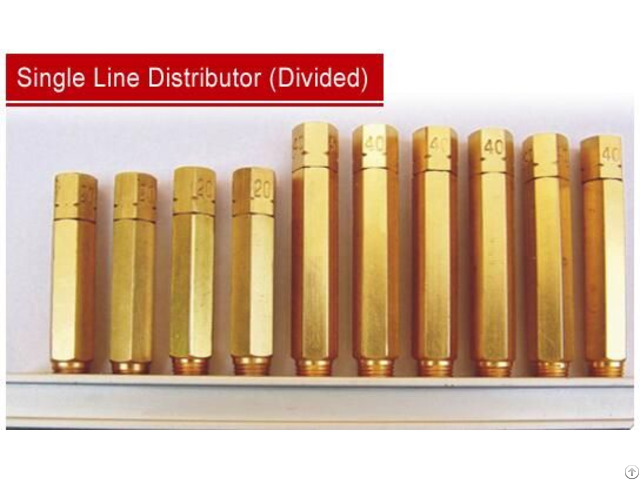

Single Line Distributor CompositiveAutomobile - Accessories - autol - China - February 21, 2017 - 19.00 Dollar US$The single line distributor with own innovation patent is easy to be installed and expanded. Each lubrication branch of distributor group works separately and each other is not affected. It can avoid the grease block, working with stable performance,...
-
