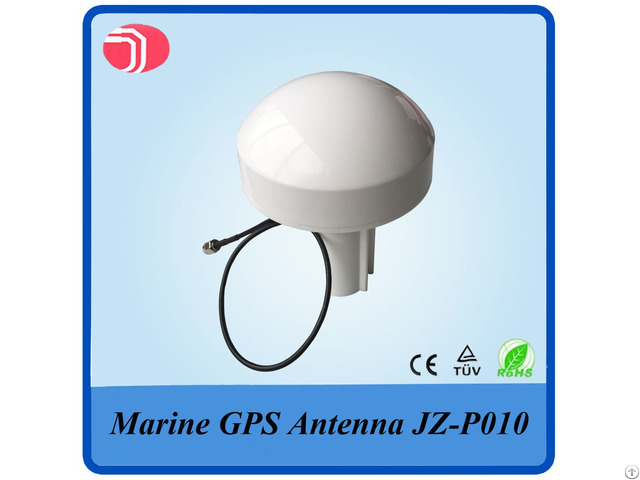

Gps Marine Antenna - China
price: 5.20 Dollar US$
Specification
1) Dielectric Antenna
Center Frequency 1575.42 MHz±3 MHz
V.S.W.
R ＜1.5: 1
Band Width ＞10 MHz
Impedance 50 ohm
Polarization Type R.H.C.
P
2) LNA/Filter
LNA Gain(w/o cable) 28±2 dB
Noise Figure ＜1.5 dB
DC Voltage 3~5 V
DC Current 10~20 mA
3) Mechanical
Radome Material ABS
Housing Black
Cable RG58 or others
Connector SMA or others
4) Environmental
Working Temp.
-40℃~+85℃
Relative Humidity Up to 95%
Waterproof IP67
Marine gps antenna, free samples offer you for test.
Company Contact:
- Phone: 86-573-82230666
- Address: NO.18 Huiyuan Road, Japanese Investment Zone, Youchegang, Jiaxing ，Zhejiang, Jiaxing , Zhejiang , China
- Email:
- Website: http://www.jinzhonggps.com
Published date: August 11, 2016
- Business Description: We are a GPS, GSM, WIFI antenna manufacturer in China.
Free samples offer you for test after confirm the cable and connector.
