Ge Ic697acc720 Digital Output Module - China

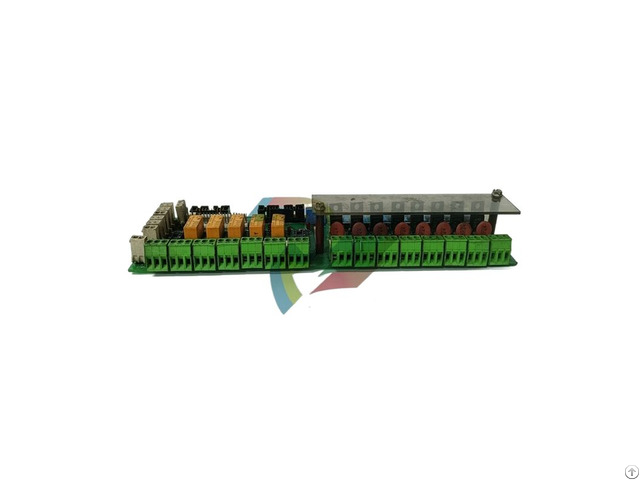

GE IC697ACC720 Digital output module Overview The GE IC697ACC720 is a digital output module designed to play a vital role in industrial control systems.

It functions as an interface between the control logic (such as a Programmable Logic Controller - PLC) and external devices that require digital control signals to operate.

Functionality and Features Digital Output Signal Generation The primary function of this module is to generate digital output signals.

These signals are used to control a variety of external devices such as relays, solenoids, indicator lights, and motors.

For example, it can send a signal to turn on a solenoid - controlled valve to manage the flow of fluids in a manufacturing process or to activate an indicator light to show the status of a machine or a process.

Output Signal Control and Configuration The module allows for flexible control and configuration of the output signals.

The output signals can be controlled through software programming, usually in the context of a PLC program.

The output states (ON/OFF) can be set individually or in groups, depending on the requirements of the application.

The output voltage and current levels can also be adjusted to match the characteristics of the connected devices.

For example, it can be configured to provide a 24V DC output with a specific current - sourcing or - sinking capacity.

Load - Handling Capacity and Protection The IC697ACC720 has a defined load - handling capacity.

It can supply a certain amount of current to the connected loads without overloading.

The maximum output - current rating per output point is an important specification.

Additionally, the module incorporates protection mechanisms such as over - current protection and short - circuit protection.

These features safeguard the module and the connected equipment from damage due to excessive current or short - circuit conditions.

Communication and Integration with Control Systems The digital output module is designed to communicate effectively with other components in the control system.

It has a communication interface that enables it to receive control commands from a PLC or other control devices.

The communication protocol used is usually compatible with the GE control - system family.

This allows for seamless integration into the overall industrial - automation system and ensures that the output signals are generated in accordance with the control - logic requirements.

Technical Specifications Output - Signal Specifications Voltage and Current Ratings: The module has a specified output - voltage range, such as 5 - 30V DC.

The maximum output - current per output point is typically defined, for example, it might be able to supply up to 2A per output.

The voltage - and - current - sourcing or - sinking capabilities are also important to consider, depending on the type of load (e.g., whether the load requires a sourcing or sinking current).

Output - Signal Type: The output signals are usually digital (ON/OFF) signals.

The response time of the output signals, which is the time it takes for the output to change state from OFF to ON or vice - versa, is an important parameter.

This response time can affect the performance of the connected devices and the overall speed of the control system.
