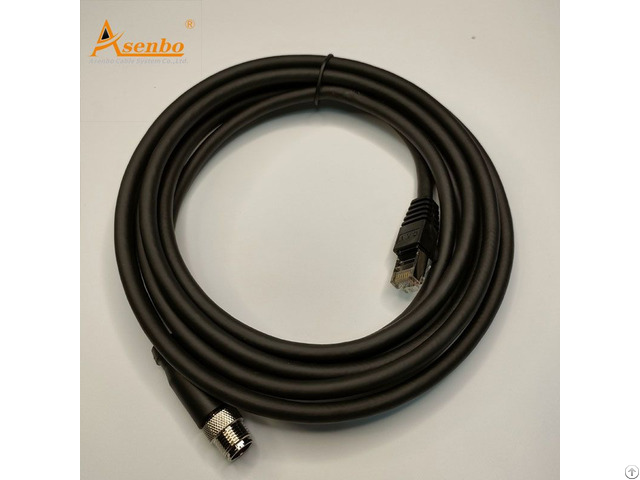

Asenbo Cat5e Ethernet Cable M12 To Rj45 - China
price: 69.99 Dollar US$
1 - Product Name: Asenbo M12 X Code to RJ45 Female industrial network cable
2 - Transmission level: Gigabit Network (cat 5e)
3 - Cable specification: 4 * 2 * 26awg, double-layer shielding (85% shielding rate)
4 - Towline times: 10 million times
5 - Towline speed: 120m / min
6 - Cable jacket: PVC
7 - Service temperature:
Fixed installation: - 15 ℃ ~ + 80 ℃
Mobile installation: - 5 ℃ ~ 80 ℃
8 - Storage temperature: - 15 ℃ ~ + 80 ℃
9 - Rated voltage: 30V
10 - Minimum bending radius:
Fixed installation: 6 times the outer diameter of the cable
Mobile installation: 8 times the outer diameter of the cable
11 - Maximum acceleration: 6m / s2
12 - Characteristic impedance: 100 ± 15 Ω
13 - Reference standard: ANSI /TIA-568-c.
2, ISO / iec11801
14 - Flame retardant grade: IEC60332-1, FT1
15 - Oil resistance grade; VDE0472 part 803/B(04/1986)
16 - Certification: CE
Product Features: The product can meet the transmission requirements of cat 5E standard, without signal interference, crosstalk and other defects, bending resistance, oil resistance, wear resistance and weather resistance.
Company Contact:
- Posted By: Asenbo Cable System Co.,Ltd.
- Phone: 15007690730
- Address: Room 402, Building D, Kejutong Industrial Park, Oulian Road, Tongfuyu Industrial Zone, Fuhai Street,, Shenzhen , China
- Email:
- Website: https://www.u-m2m.com
Published date: July 18, 2022
- Business Description: Our technical experts are available to support specification queries, providing recommendations on the most appropriate cable,and cable sheathing material, for your installation.
In the event that the portfolio of industrial cables does not have meet the needs of your application, The Cable Lab can support customisation along with testing and manufacture.
