Aluminum Glass Fiber Heat Protection Tube With Insulation Layer - China

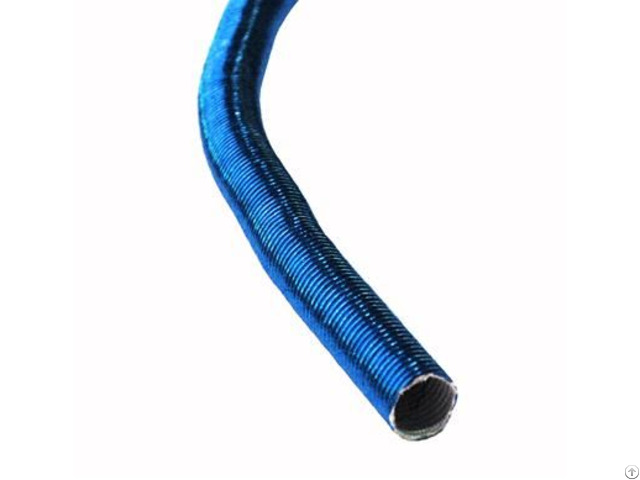

Aluminum glass fiber heat protection tube with insulation layer

IN-HPT Heat Protection Tube with Glass Wool also named HAVC control duct hose, can be used to control cables, gear cables, cooling tubes, air conditioning and ventilation pipes, fuel hoses, wire sets and heat sensitive parts for Protection.

The air duct tube inside can be with glass fiber, silica fiber, basalt fiber and foam.

The duct hose can be made by aluminum, fiberglass, paper, PVC.

Application Elastomere tubes

All kinds of medium-carrying tubes

Bowden cables and gear cables

Wire sets

Temperature-sensitive parts

Blast/Exhaust Dryer

Print/Copy Machines

AC-supply/Exhaust

Industrial/Machine Industries

Construction, Moving Industrie Specifications Part Number Construction Material Size

mm

HPT-APK APK aluminum, kraft paper, plastic film 6-140

HPT-PAK PAK kraft paper, aluminum, plastic film 6-140

HPT-KAK PAP kraft paper, aluminum, kraft paper 6-140

HPT-KAK KAK plastic film, aluminum, plastic film 6-140

HPT-APP APP aluminum, kraft paper, kraft paper 6-140

HPT-AP AP aluminum, kraft paper 6-140

HPT-3A 3A 3 layer aluminum 6-140

HPT-6A 6A 6 layer aluminum 6-140

HPT-A5P A5P aluminum, 5 layer kraft paper 6-140

HPT-AFA AFA aluminum, fiberglass, aluminum 6-140

HPT-AAF AAF aluminum, aluminum, fiberglass 6-140

HPT-FAA FAA fiberglass, aluminum, aluminum 6-140 Technical Datasheet

Material Aluminum, paper, fiberglass, PVC, insulation layer

Working temperature -40℃ - +343℃

Flammability VW-1

Melting point +537℃

Standard Color Black, yellow, silver

Standard Length Customs length

MOQ 500 meter each size

Cutting tool Scissors

Notes: The paper have standard grade and fire resistant grade.
