Aluminum Foil Coated Fiberglass Heat Reflective Sewn Sleeve - China

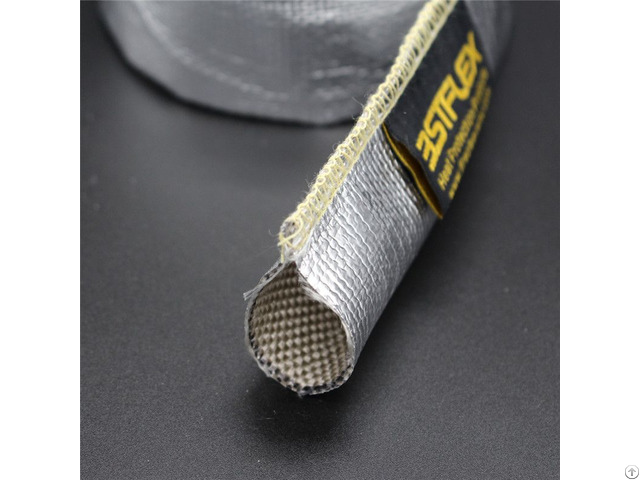

Aluminum Foil Coated Fiberglass Heat Reflective Sewn Sleeve is a layer of aluminum foil under fiberglass base fabric, and sewn with high temperature thread into a sleeve.

This sleeve is easily to install due to the smooth inner fiberglass surface and reflects more then 95% radiant heat.

Features This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.

Application It is used to protect the industry & automotive wires, cables, hydraulic hoses, piping and tubing from radiant heat sources.

Specifications DATASHEET

Part Number Normal Inside diameter Meter for spool

Inches mm Dash # Meter

SEALFS-13 1/2 13 -8 20

SEALFS-16 5/8 16 -10 20

SEALFS-19 3/4 19 -12 20

SEALFS-22 7/8 22 -14 20

SEALFS-25 1 25 -16 20

SEALFS-29 1 1/8 29 -18 20

SEALFS-32 1 1/4 32 -20 20

SEALFS-35 1 3/8 35 -22 20

SEALFS-38 1 1/2 38 -24 20

SEALFS-41 1 5/8 41 -26 20

SEALFS-44 1 3/4 44 -28 20

SEALFS-48 1 7/8 48 -30 20

SEALFS-51 2 51 -32 20

SEALFS-57 2 1/4 57 36 20

SEALFS-60 2 2/5 60 -38 20

SEALFS-64 2 1/2 64 -40 20

SEALFS-67 2 5/8 67 -42 20

SEALFS-70 2 3/4 70 -44 20

SEALFS-73 2 7/8 73 -46 20

SEALFS-76 3 76 -48 20

SEALFS-83 3 1/4 83 -52 20

SEALFS-89 3 1/2 89 -56 20

SEALFS-95 3 3/4 95 -60 20

SEALFS-102 4 102 -64 20 Technical Datasheet

Material Aluminum, fiberglass

Working temperature -40℃ - +260℃

Flammability VW-1

Melting point +537℃

Standard Color Silver

Standard Thickness 0.8 mm

MOQ 100 meter each size

Cutting tool Scissors Notes:

Special thickness upon request

Special length or packing upon request.

Special size upon request.
