Aluminum Aramid Kevlar Heat Sleeve - China

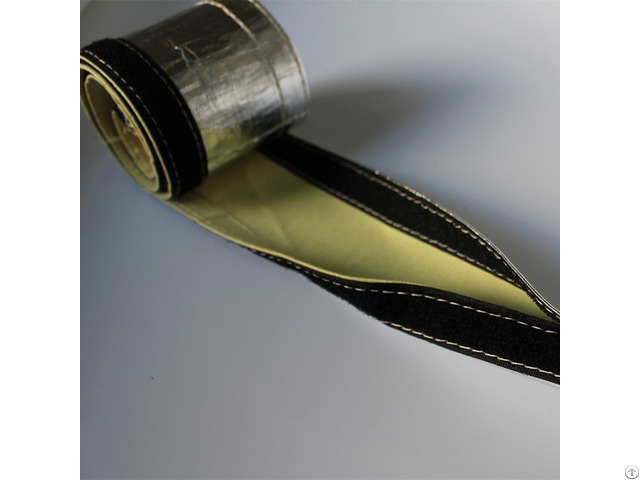

SEALAS is aluminum coated aramid fiber heat reflective sleeve sewn type and reflects more then 95% radiant heat.

Aramid fiber is 5 times stronger than stainless steel.

Features This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.

Application It is used to protect the industry & automotive wires, cables, hydraulic hoses, piping and tubing from radiant heat sources.

Specifications DATASHEET

Part Number Normal Inside diameter Meter for spool

Inches mm Dash # Meter

SEALAS-13 1/2 13 -8 50

SEALAS-16 5/8 16 -10 50

SEALAS-19 3/4 19 -12 50

SEALAS-22 7/8 22 -14 50

SEALAS-25 1 25 -16 50

SEALAS-29 1 1/8 29 -18 50

SEALAS-32 1 1/4 32 -20 50

SEALAS-35 1 3/8 35 -22 50

SEALAS-38 1 1/2 38 -24 50

SEALAS-41 1 5/8 41 -26 50

SEALAS-44 1 3/4 44 -28 50

SEALAS-48 1 7/8 48 -30 50

SEALAS-51 2 51 -32 50

SEALAS-57 2 1/4 57 36 50

SEALAS-60 2 2/5 60 -38 50

SEALAS-64 2 1/2 64 -40 50

SEALAS-67 2 5/8 67 -42 50

SEALAS-70 2 3/4 70 -44 50

SEALAS-73 2 7/8 73 -46 50

SEALAS-76 3 76 -48 50

SEALAS-83 3 1/4 83 -52 50

SEALAS-89 3 1/2 89 -56 50

SEALAS-95 3 3/4 95 -60 50

SEALAS-102 4 102 -64 50

Technical Datasheet

Material Aluminum, aramid

Working temperature -40℃ - +343℃

Flammability VW-1

Melting point +537℃

Standard Color Silver

Standard Thickness 0.45 mm

MOQ 50 meter each size

Cutting tool Scissors Notes:

Special thickness upon request

Special length or packing upon request.

Special size upon request.
