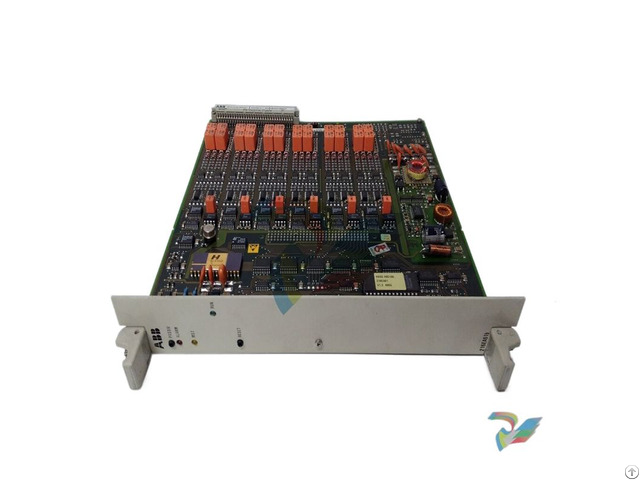

ABB 560CMR01 Communication Unit Product Overview ABB 560CMR01 Communication Unit is one of the CMUs (Communication Module Units) of the RTU560 product family, which integrates a 32-bit CPU and a variety of communication interfaces to provide reliable data transmission and communication support for industrial automation and control systems.

Communication interfaces Serial Communication Interface: The Communication Unit is equipped with 2 serial communication interfaces (RS-232 or RS-485) for remote communication and data transmission.

These interfaces support a variety of communication protocols and baud rate settings to meet the communication needs of different devices and systems.

Ethernet interfaces: In addition, the ABB 560CMR01 provides 2 Ethernet interfaces (10/100BaseT) to support Fast Ethernet connections.

These interfaces can be used for communication with control systems, local HMI systems and other network devices.

USB Port: The communication unit is also equipped with a USB 2.0 device interface for diagnostic and maintenance purposes.

Through this interface, users can easily connect debugging tools or storage devices to configure, monitor and troubleshoot the communication unit.

Functional features Interface management: The ABB 560CMR01 communication unit manages and controls the I/O modules through the serial I/O bus interface, ensuring accurate data transfer and normal device operation.

Event processing: The communication unit can read process events from the input module and send commands to the output module to achieve real-time data processing and remote control of equipment.

Time base and internal database management: The communication unit is also responsible for managing the time base of RTU560 product line station and synchronising the I/O modules to ensure the time consistency and data synchronisation of the whole system.

It also maintains an internal database for storing and managing system-related configuration files and data.

Network security: The ABB 560CMR01 communication unit provides standard network security features (version R0001) or advanced network security features with a security chip (version R0002) to ensure the security and integrity of data transmission.

Applications and benefits Industrial automation: ABB 560CMR01 communication unit is widely used in the field of industrial automation, and can be connected to various sensors, actuators, controllers and other equipment to achieve reliable data transmission and interconnection of equipment.

High performance: the communication unit adopts 32-bit CPU and advanced communication technology, with high performance and stability, which can meet the needs of large-scale industrial automation systems.

Flexibility: The communication unit provides a variety of communication interfaces and configuration options, which can be flexibly configured and expanded according to different application scenarios and needs.

Easy maintenance: Through USB port and diagnostic tools, users can easily maintain and troubleshoot the communication unit, reducing maintenance cost and time.
