9 Inch X 1-3 4 Inch Trailer Hydraulic Drum Brake - China

Capacity: 13"-14" Wheel 1, 450 kgs Axle

15"-16" Wheel 1, 200 kgs Axle

Part No: HN09B

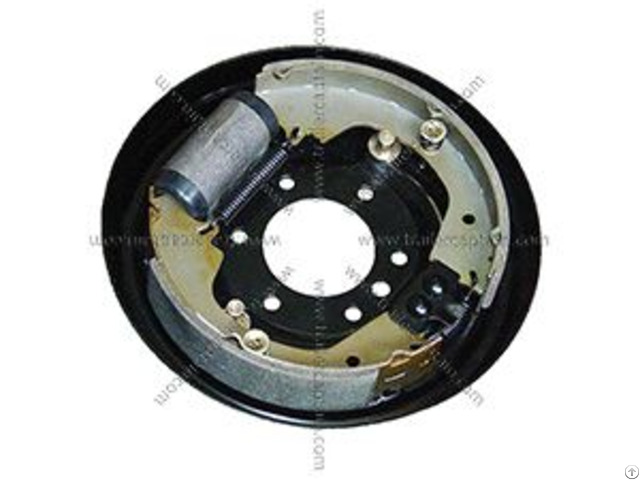

Trailer Galvanized Electric Brake Description: 9 inch x1.75 inch trailer hydraulic backing plate is electrophoretic-coated.

9” x 1.75” hydraulic trailer drum brake comes complete with shoes, springs and hydraulic cylinder ready to bolt on.

The maximum capacity of one 9" hydraulic trailer drum brake kit is 1200 kg for 15” or 16” wheel, and 1450 kg is for 13” or 14” wheel.

9” hydraulic backing plate mounts on standard 4 bolt flange.

9” trailer brake assemblies are most often used to tow boat trailers and most RVs in saltwater.

The 9 inch hydraulic brakes need less ongoing maintenance than 9 inch mechanical brakes, but be more expensive to install or replace.

Features

l Requires Wheel Cylinder and hydraulic lines (sold separately).

l E-coated backing plates resist wear and corrosion.

l Less ongoing maintenance.

l These 9” hydraulic trailer brakes exchange with most axle brands including AL-KO and many standard brakes.

l Fully Assembled; Quick and easy installation.

SpecificationsBoat Trailer Hydraulic Disc Brake Caliper

Ø Dimension: 9 inch x 1 3/4 inch

Ø Axle Capability: 1200 kg Axle (15”/ 16” Wheel), 1450 kg Axle (13” / 14” Wheel)

Ø Mounting Flange Bolt Pattern: 4 bolt

Ø Brake Fit: Left Hand / Driver Side / LH, Right Hand / Passenger Side / RH

Product Composition 9" Trailer Hydraulic Backing Plate

² 9” x 1 3/4" Brake Shoe Kit x 1

² E-Coated Back Plate x 1

² Wheel Cylinder x 1

² Long spring x 1

² Short spring x 1 Our company hot selling hydraulic disc brakes and electric backing plate.

We have a whole set of quality management system.

If you have interested in our trailer axles, please feel free to contact us.
