M120t Rs485 Etherent Modbus Tcp Remote Io Module 4din 4ain 2ao 4do - China

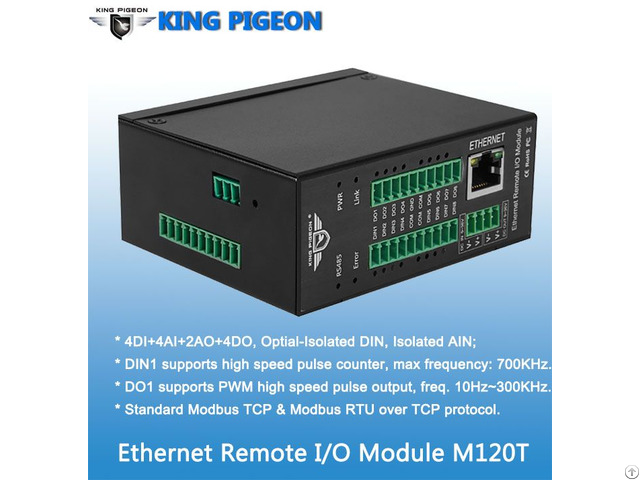

Model no：M120T M100T Ethernet Remote I/O Module provides 4 optical-isolated digital inputs, supports Max.

700KMHz high speed pulse counter, 4 isolated 12bits analog inputs, supports 0~5V, 0~10V, 4~20mA, 0~20mA analog signal, 2 channel 12bits analog outputs, supports 0~10VDC signal output.

4 digital outputs, supports 10Hz~300Khz high speed pulse output or relay outputs.

It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

1 - Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;

2 - Wide range power supply 24 ~ 36VDC with over voltage and phase-reversal protection;

3 - Management and configuration via LAN connection configuration software for easy operation and maintenance, Integrated 10/100M adaptive Ethernet module, supports Modbus TCP, MQTT protocol;

4 - 4 optical isolated digital input, supports max.

700KHz high speed pulse counter;

5 - 4 digital output or relay output, supports 10Hz~300KHz high speed pulse output;

6 - 4 isolated analog input, 12-bit resolution, supports 0~20mA, 4~20mA, 0-5VDC, 0-10VDC;

7 - 2 analog output, 12-bit resolution, supports 0-10VDC;

8 - High sampling frequency and special filtering strategy to ensure reliability;

9 - 1 RS485 Serial port, supports Modbus RTU/ASCII Master, can extend I/O modules;

10 - Supports register mapping function and extend I/O inquiry strategy;

11 - Provides 1 channel 24~36VDC power source output for external device, saving wiring cost;

12 - LED instructions work status, with reset button to reset, easy on-site installation and commissioning;

13 - Using metal shell, protection class IP30 - Metal shell and system security isolation, especially suitable for industrial applications in the field;

14 - Small size, L105 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.
