Abb Ref 610 Protection Relay - China

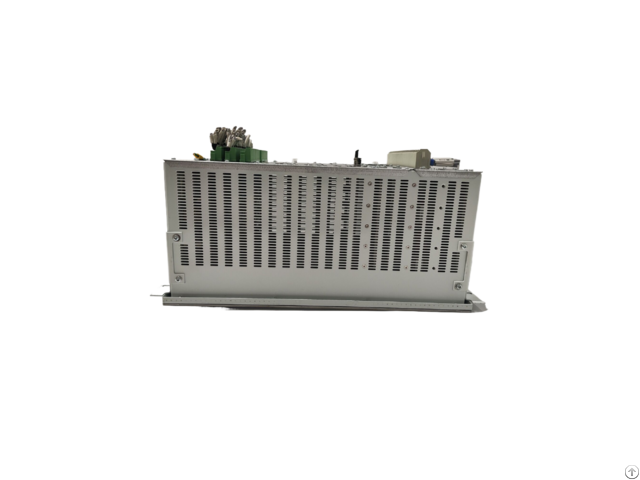

ABB REF 610 Protection Relay INTRODUCTION REF 610 is a versatile multifunction protection relay mainly designed for protection of incoming and outgoing feeders in MV distribution substations.

REF 610 can also be used as back-up protection for motors, transformers and generators, in industrial as well as in utility applications.

The large number of integrated protection functions, including three-element overcurrent protection, two-element, non-directional ground-fault protection as well as thermal protection, makes REF 610 a complete protection against overcurrent and ground faults.

FEATURES ï Three-phase non-directional overcurrent protection with definite-time or IDMT (mode) characteristic, low-set element ï Three-phase non-directional overcurrent protection with definite-time or instantaneous characteristic, high-set element ï Three-phase non-directional overcurrent protection with definite-time or instantaneous characteristic, instantaneous element ï Non-directional ground fault protection with definite-time, IDMT (mode) or instantaneous characteristic, low-set element ï Non-directional ground-fault protection with definite-time or instantaneous characteristic, high-set element ï Three-phase thermal overload protection for cables ï Arc protection - two lens sensors for arc detection (optional) - automatic reference level adjustment based on backlight intensity - arc detection via a remote light signal ï Automatic reclosing 1.3 shots ï Circuit-breaker failure protection ï Trip counters for circuit-breaker condition monitoring ï Trip-circuit supervision with possibility to route the warning signal to a signal output ï Trip lockout function ï Four accurate current inputs ï User-selectable rated frequency 50/60 Hz ï Three normally open power output contacts ï Two change-over signal output contacts and three additional change-over signal output contacts on the optional I/O module ï Output contact functions freely configurable for desired operation ï Two galvanically isolated digital inputs and three additional galvanically isolated digital inputs on the optional I/O module
