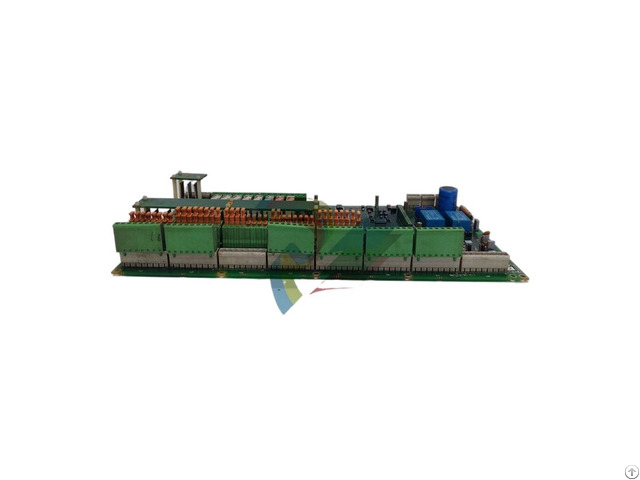

ABB 3HNA025019-001 APIP-05A Sprayed IO boards Overview The ABB 3HNA025019 - 001 APIP - 05A Sprayed IO (Input/Output) Boards are an important part of ABB's automation and control systems.

These boards are designed to handle the input and output of digital and analog signals in a reliable and efficient manner.

Functionality and Features Input Signal Handling The IO boards can receive a variety of input signals.

For digital inputs, they can detect binary signals such as the on/off state of switches, proximity sensors, or digital output signals from other devices.

The boards are designed to handle different voltage levels and signal types, ensuring accurate detection of the digital state.

For analog inputs, they can accept signals such as voltage or current values from sensors like temperature sensors (e.g., a thermocouple providing a voltage proportional to the temperature) or pressure sensors (e.g., a current - output pressure sensor).

Output Signal Generation On the output side, the APIP - 05A boards can generate both digital and analog output signals.

Digital output signals can be used to control devices such as relays, indicator lights, or digital actuators.

The boards can provide the appropriate voltage and current levels to drive these devices.

Analog output signals are useful for controlling equipment that requires a variable - voltage or - current input, such as variable - speed drives or analog - controlled valves.

The output signals are generated with a high degree of accuracy and stability to ensure proper control of the connected devices.

Signal Conditioning and Processing The boards perform signal conditioning functions.

For input signals, this may include amplification, filtering, and level - shifting.

Amplification is important when the input signals are weak, such as low - voltage sensor outputs.

Filtering helps to remove electrical noise and interference that could affect the accuracy of the signal.

Level - shifting is used when the input signal voltage level does not match the internal operating voltage of the board.

On the output side, the boards ensure that the generated signals have the correct characteristics and are in the appropriate format for the connected devices.
