Lightweight Gyro Stabilised Eo Ir Thermal Imaging Gimbal Camera - China

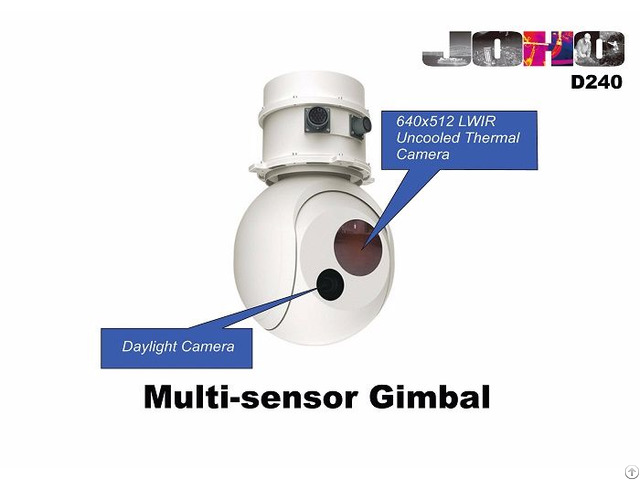

D240 Lightweight EO/IR Gimbal D240A/240B EO/IR gimbal camera have been especially designed for UAV and helicopter for search and rescue, observation, tracking, law enforcement.

D240A is an affordable gimbal camera which is equipped with a single FOV camera and HD CCD sensor for day work; If you have to fulfill mission at day and night, D240B is an optimal choice which is equipped with high resolution infrared thermal camera.

Using 2-gimbal 2-axis mechanism, it ensures high accuracy gyro stabilization.

TECHNICAL DATA

240A

Day light camera Image resolution 1800 Megapixel

Video resolution 1920 ×1080

Gyro stabilization

Stabilization accuracy ≤180μ rad

Detection scope

Azimuth 360° continuous

C +20° ~ -110° (horizontal forward is 0°)

Record capability Images 32G, capable of storage more than 2000pcs image, 1080P HD more than 4h

Physical Dimension: Φ240×400mm Weight: ≤8Kg 240B Camera

IR detector LWIR uncooled FPA Resolution 640×480

Gyro stabilization

Stabilization accuracy ≤180μrad

Relative temperature measurement accuracy 1ºC

Movement range

Azimuth 360° × n continuous

Elevation +20° ~ -110° (horizontal forward is 0°)

Record capability

Images 32G, capable of storage more than 2000pcs image

Video 32G, capable of storage 1080P HD more than 4h

Physical

Dimension Φ240×400mm (H)

Weight ≤8Kg
