Sadin Sd1904 Sd2204 Tractor - China

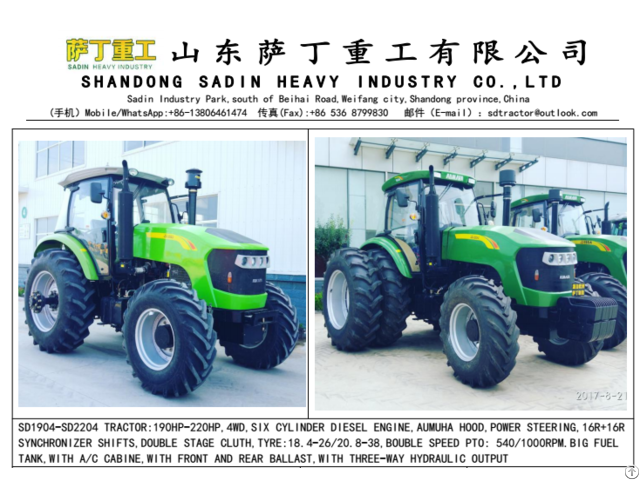

Sd1904-sd2204 tractor: 190hp-220hp, 4wd, six cylinder diesel engine, aumuha hood, power steering, 16r+16r synchronizer shifts, double stage cluth, tyre: 18.4-26/20.8-38, bouble speed pto: 540/1000rpm.

big fuel tank, with a/c cabine, with front and rear ballast, with three-way hydraulic output

model sd1854 sd2204

horsepower(hp) 190 220

type 4×4 wheeled tractor 4wd

overall dimension(mm) length 5280 width 2780/(double rear tyre 3460) height 3070

tread(mm) front wheel 2030 rear wheel 1700-2500

wheel base(mm) 2780

ground clearance(mm) 340

structure mass(kg) 7450

engine type vertical, water cooled, six cylinder, four stork, turbo-charge, inner-cooling rated rev.

(r/min) 2200 rated power (kw) 136 162

steering power steering

clutch dry-friction, double stage

transmission system gearbox 16f+16r synchronizer shifts central transmission gear sector

tractor brake hydraulic brake, discs

tyre front wheel 18.4-26 rear wheel 20.8-38

pto shaft rev.

540r/min and 1000r/min

Company Contact:

• Posted By: Shandong Sadin Heavy industry Co.,Ltd

• Phone: +86-13806461474

• Address: BeiHai Road, Weifang , shandong provnice, China

• Email:

• Website: http://www.sadin-tractor.com

• Business Description: Shandong Sadin Heavy industry Co., Ltd. (Short for Sadin Heavy Industry) is a large industry equipment manufacturer, mainly manufacturing high-level agricultural equipment (Sadin tractor, Aumahr Tractor).

  Sadin Heavy Industry is the key investment promotion and important developing enterprise of Weifang city,

  Sadin Heavy Industry is located on south end of Beihai road Weifang city, with total planed investment amount of 100 Million Yuan, covers an area of 200000 square meters, engaged in manufacturing process of welding, molding, painting and final assembly etc.

  The designed annual production capacity is 50, 000 sets of agricultural machines.

  The main product is tractor with 25HP to 300HP, including TY/TE/TB/TD/FA/FG/KA/NA series.

  Our products sell well all over the country and have been exported abroad for more than 10 counties and regions.

  Sadin Heaving Industry is based on the top technology and technique in China from beginning.

  Meanwhile, has been established partnership with world famous spare parts suppliers.

  Our company believes in “Quality is the future, double win can be developed”.

  We are focusing on the research and development of high quality tractor, and keep the leading position on quality and function.

  Face the future, Sadin heavy industry will treat domestic market as the center, and will activatlly seek the chance all over the world and realize the transformation from a regional enterprise to a global enterprise.

  In next five years, Sadin heavy industry will make great efforts to be the leader of professional tractor manufacturing factories in China.
